Simple Module BaseMobility

Package: org.mixim.base.modules
File: base/modules/BaseMobility.ned

Module which is responsible for mobility related information like position and movement BaseMobility itself defines a static mobility pattern (means only a position, no movement). Mobility modules which extend from this module will define more complex movement patterns.

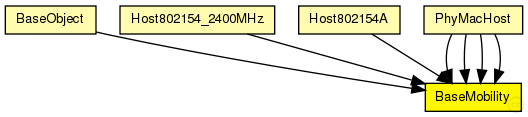

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

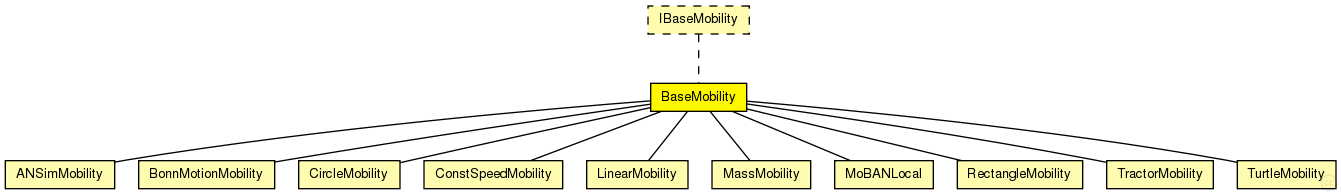

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Known subclasses:

ANSimMobility (simple module)	Uses the <position_change> elements of the ANSim tool's trace file.
BonnMotionMobility (simple module)	Uses the native file format of BonnMotion (http://www.cs.uni-bonn.de/IV/BonnMotion/).
CircleMobility (simple module)	Moves the node around a circle.
ConstSpeedMobility (simple module)	Controls all movement related things of a host
LinearMobility (simple module)	This is a linear mobility model with speed, angle and acceleration parameters. Angle only changes when the mobile node hits a wall: then it reflects off the wall at the same angle.
MassMobility (simple module)	This is a random mobility model for a mobile host with a mass. It is the one used in "Optimized Smooth Handoffs in Mobile IP" by Perkins & Wang.
MoBANLocal (simple module)	This is the local mobility module of MoBAN. It should be instantiated in each node that belongs to a WBAN. The NED parameter "coordinatorIndex" determine to which WBAN (MoBANCoordinator) it belongs. The current implementation uses the Random Walk Mobility Model (RWMM) for individual (local) movement with a sphere around the node, with given speed and sphere radius of the current posture. The reference point of the node it the current posture, the sphere radius, and the speed is given by the corresponding coordinator through the blackboard. RWMM determines the location of node at ant time relative to the given reference point.
RectangleMobility (simple module)	Moves the node around a rectangle.
TractorMobility (simple module)	Moves a tractor through a field with a certain amount of rows. Since the tractor also moves around the field, the tractor travels the number of rows PLUS one rows. Consider the following piece of ascii-art for rows=2.
TurtleMobility (simple module)	A LOGO-style movement model, with the script coming from XML. It can be useful for describing random as well as deterministic scenarios.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

BaseObject (compound module)	(no description)
Host802154_2400MHz (compound module)	This NED module defines a host using an IEEE 802.15.4 transceiver at 2.4GHz for wireless communications, that can be used to simulate wireless sensor networks.
Host802154A (compound module)	This host NED module models a host using an IEEE 802.15.4A correlation receiver.
PhyMacHost (compound module)	(no description)
PhyMacHost (compound module)	(no description)
PhyMacHost (compound module)	(no description)
PhyMacHost (compound module)	(no description)

Parameters:

Name	Type	Default value	Description
notAffectedByHostState	bool	true
coreDebug	bool		debug switch for the core framework
x	double		x coordinate of the nodes' position (-1 = random)
y	double		y coordinate of the nodes' position (-1 = random)
z	double		z coordinate of the nodes' position (-1 = random)

Properties:

Name	Value	Description
display	i=block/cogwheel

Source code:

// Module which is responsible for mobility
// related information like position and movement
// BaseMobility itself defines a static mobility
// pattern (means only a position, no movement).
// Mobility modules which extend from this module
// will define more complex movement patterns.
simple BaseMobility like IBaseMobility
{
    parameters:
        bool notAffectedByHostState = true;
        bool coreDebug; // debug switch for the core framework
        double x; // x coordinate of the nodes' position (-1 = random)
        double y; // y coordinate of the nodes' position (-1 = random)
        double z; // z coordinate of the nodes' position (-1 = random)
        @display("i=block/cogwheel");
}
