Compound Module Host802154_2400MHz

This NED module defines a host using an IEEE 802.15.4 transceiver at 2.4GHz for wireless communications, that can be used to simulate wireless sensor networks.

For instance, you can use it to compare your own MAC protocol to the 802.15.4 non beacon enabled MAC protocol, or to evaluate IEEE 802.15.4 wireless sensor networks. It is also a good starting point to define your own Host file.

This model was independently validated on a wireless sensor network testbed. For more information, see Accurate Timeliness Simulations for Real-Time Wireless Sensor Networks, J. Rousselot, J.-D. Decotignie, M. Aoun, P. van der Stok, R. Serna Oliver, G. Fohler. In Proceedings of the 2009 Third UKSim European Symposium on Computer Modeling and Simulation. http://dx.doi.org/10.1109/EMS.2009.34.

Author: Jérôme Rousselot

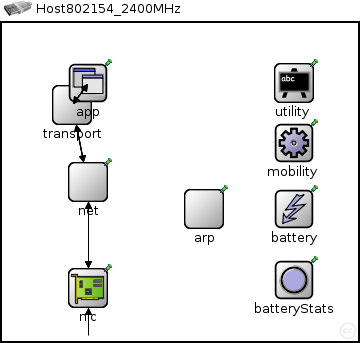

Usage diagram:

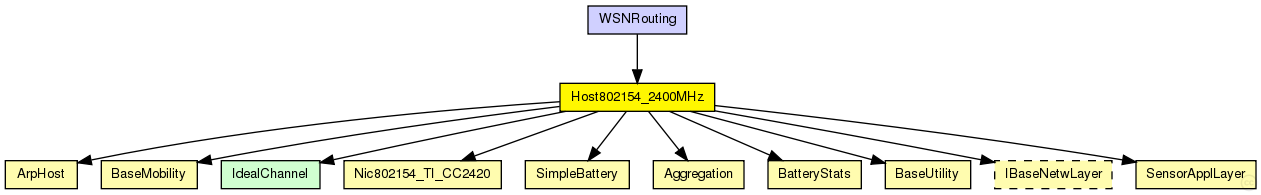

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// This NED module defines a host using an IEEE 802.15.4 transceiver at 2.4GHz
// for wireless communications, that can be used to simulate wireless sensor
// networks.
//
// For instance, you can use it to compare your own MAC protocol to
// the 802.15.4 non beacon enabled MAC protocol, or to evaluate IEEE 802.15.4
// wireless sensor networks. It is also a good starting point to define your
// own Host file.
//
// This model was independently validated on a wireless sensor network testbed.
// For more information, see
// Accurate Timeliness Simulations for Real-Time Wireless Sensor Networks,
// J. Rousselot, J.-D. Decotignie, M. Aoun, P. van der Stok, R. Serna Oliver,
// G. Fohler. In Proceedings of the 2009 Third UKSim European Symposium on Computer
// Modeling and Simulation. <a href="http://dx.doi.org/10.1109/EMS.2009.34">http://dx.doi.org/10.1109/EMS.2009.34</a>.
//
// @author Jérôme Rousselot
//
module Host802154_2400MHz
{
    parameters:
        double numHosts; // total number of hosts in the network
        string netwType = default("DummyRoute"); //type of the network layer

        @display("bgb=356,318,white;bgp=10,10;b=40,40,rect;i=device/usb");
    gates:
        input radioIn;

    submodules:
        utility: BaseUtility {
            parameters:
                @display("p=292,60;i=block/blackboard");
        }
        batteryStats: BatteryStats {
            @display("p=292,257;i=block/circle");
            detail = default(false);
            timeSeries = default(false);
        }
        battery: SimpleBattery {
            @display("p=292,186;i=block/control");
            nominal = default(1000 mAh);
            capacity = default(1000 mAh);
            voltage = default(3 V);
            resolution = default(60 s);
            publishDelta = default(1);
            publishTime = default(60 s);
            numDevices = default(1);
        }
        mobility: BaseMobility {
            parameters:
                @display("p=292,120;i=block/cogwheel");
        }
        nic: Nic802154_TI_CC2420 {
            parameters:
                @display("b=32,30;p=86,265;i=block/ifcard");
        }
        net: <netwType> like IBaseNetwLayer {
            parameters:
                @display("p=86,159");
        }
        transport: Aggregation;
        arp: ArpHost {
            parameters:
                @display("p=202,186");
        }
        app: SensorApplLayer {
            parameters:
                @display("p=86,60;i=block/app");

        }

    connections:
        net.lowerGateOut --> nic.upperGateIn;
        net.lowerGateIn <-- nic.upperGateOut;
        net.lowerControlOut --> nic.upperControlIn;
        net.lowerControlIn <-- nic.upperControlOut;

        net.upperGateOut --> transport.lowerGateIn;
        net.upperGateIn <-- transport.lowerGateOut;
        net.upperControlOut --> transport.lowerControlIn;
        net.upperControlIn <-- transport.lowerControlOut;

        transport.upperGateOut --> app.lowerGateIn;
        transport.upperGateIn <-- app.lowerGateOut;
        transport.upperControlOut --> app.lowerControlIn;
        transport.upperControlIn <-- app.lowerControlOut;


        radioIn --> nic.radioIn;



}
