Compound Module PhyMacHost

Package: org.mixim.examples.ieee802154Narrow
File: examples/ieee802154Narrow/PhyMacHost.ned

(no description)

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

ieee802154Narrow (network)

This example shows how to use MiXiMs implementation of the ieee802154 narrow band protocol. It also provides an example on using the global blackboard provided by BaseWorldUtility.

Parameters:

Name	Type	Default value	Description
numHosts	double		total number of hosts in the network

Properties:

Name	Value	Description
display	bgb=363,335,white;bgp=10,10

Gates:

Name	Direction	Size	Description
radioIn	input

Unassigned submodule parameters:

Name	Type	Default value	Description
batteryStats.debug	bool		write per-activity and per-device statistics to omnetpp.sca (if false, only total energy and lifetime are written)
batteryStats.detail	bool		subscribe to battery status and record time series data in omnetpp.vec (resolution depends on battery's publishDelta)
batteryStats.timeSeries	bool
battery.debug	bool
battery.nominal	double		nominal battery capacity
battery.capacity	double		battery capacity
battery.voltage	double		nominal voltage
battery.resolution	double		capacity is updated at least every resolution time
battery.publishDelta	double		if > 0, capacity is published to the BB each publishTime interval
battery.publishTime	double		number of modules that will draw energy from the battery
battery.numDevices	int
utility.coreDebug	bool		debug switch for the base framework
mobility.coreDebug	bool		debug switch for the core framework
mobility.x	double		x coordinate of the nodes' position (-1 = random)
mobility.y	double		y coordinate of the nodes' position (-1 = random)
mobility.z	double		z coordinate of the nodes' position (-1 = random)
arp.coreDebug	bool		debug switch for the core framework
appl.packetTime	double
appl.packetsPerPacketTime	double
appl.debug	bool		debug switch
appl.burstSize	int	1
appl.packetLength	int		length of the generated packet (in bits)
appl.destination	int	-1
nic.phy.coreDebug	bool		debug switch for core framework
nic.phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
nic.phy.usePropagationDelay	bool		Should transmission delay be simulated?
nic.phy.useThermalNoise	bool		should thermal noise be considered?
nic.phy.analogueModels	xml		Specification of the analogue models to use and their parameters
nic.phy.sensitivity	double		The sensitivity of the physical layer [dBm]
nic.phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
nic.phy.initialRadioState	int	0	state the radio is initially in
nic.phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
nic.phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
nic.phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
nic.phy.initialRadioChannel	int	0	Initial radio channel.
nic.phy.numActivities	int	5	the number of different power consuming activities the phy layer has change this parameter if your decider or physical layer uses more than the default 5 activities (sleep, rx, tx, switching, decoding)
nic.mac.notAffectedByHostState	bool	false
nic.mac.coreDebug	bool		debug switch
nic.mac.debug	bool	false	debug switch
nic.mac.stats	bool	true
nic.mac.trace	bool	false
nic.mac.queueLength	double	100	size of the MAC queue (maximum number of packets in Tx buffer)
nic.mac.txPower	double	1 mW	tx power [mW]
nic.mac.useMACAcks	bool	true	Send/Expect MAC acks for unicast traffic?
nic.mac.macMaxFrameRetries	double	3	maximum number of frame retransmission only used when usage of MAC acks is enabled
nic.mac.macMaxCSMABackoffs	double	4	maximum backoffs
nic.mac.contentionWindow	int	2	# of backoff periods of the initial contention window (for linear and constant backoff method only)
nic.mac.macMinBE	double	3	minimum backoff exponent (for exponential backoff method only)
nic.mac.macMaxBE	double	5	maximum backoff exponent (for exponential backoff method only)

Source code:

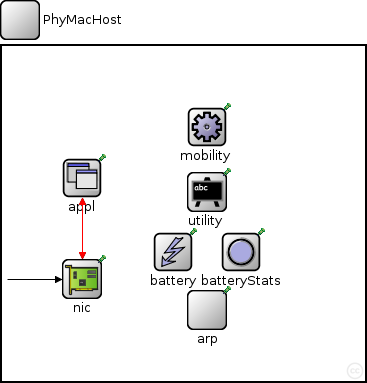

module PhyMacHost
{
    parameters:
        double numHosts; // total number of hosts in the network

        @display("bgb=363,335,white;bgp=10,10");
    gates:
        input radioIn;

    submodules:
        batteryStats: BatteryStats {
            @display("p=239,206;i=block/circle");
        }
        battery: SimpleBattery {
            @display("p=171,206;i=block/control");
        }
        utility: BaseUtility {
            parameters:
                @display("p=205,146;i=block/blackboard");
        }
        mobility: BaseMobility {
            parameters:
                @display("p=205,81;i=block/cogwheel");
        }
        arp: BaseArp {
            @display("p=205,264;b=30,25;i=block/process");
        }
        appl: NetworkStackTrafficGen {
            parameters:
                @display("p=80,132;b=20,20,rect,white;i=block/app");
        }
        nic: Nic802154_TI_CC2420 {
            parameters:
                @display("b=32,30;p=80,233;i=block/ifcard");
        }
    connections:
        nic.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> appl.lowerGateIn;
        nic.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- appl.lowerGateOut;
        nic.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> appl.lowerControlIn;
        nic.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- appl.lowerControlOut;
        radioIn --> nic.radioIn;

}
