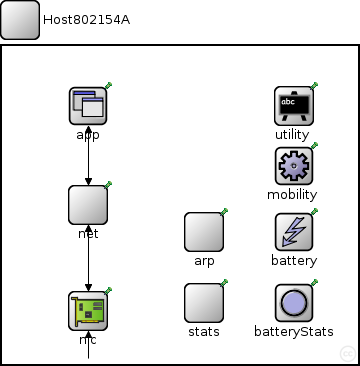

Compound Module Host802154A

This host NED module models a host using an IEEE 802.15.4A correlation receiver.

Author: Jérôme Rousselot

Citation of the following publication is appreciated if you use the MiXiM UWB PHY model for a publication of your own. J. Rousselot, J.-D. Decotignie, An ultra-wideband impulse radio PHY layer model for network simulation. SIMULATION January 2011 vol. 87 no. 1-2 82-112.

For more information, see also:

[1] J. Rousselot, J.-D. Decotignie, An ultra-wideband impulse radio PHY layer model for network simulation. SIMULATION January 2011 vol. 87 no. 1-2 82-112. http://dx.doi.org/10.1177/0037549710377767.

[2] J. Rousselot, Ultra Low Power Communication Protocols for UWB Impulse Radio Wireless Sensor Networks. EPFL Thesis 4720, 2010. http://infoscience.epfl.ch/record/147987.

[3] J. Rousselot, J.-D. Decotignie, A High-Precision Ultra Wideband Impulse Radio Physical Layer Model for Network Simulation. Second International Omnet++ Workshop,Simu'TOOLS, Rome, March 2009. http://portal.acm.org/citation.cfm?id=1537714.

Usage diagram:

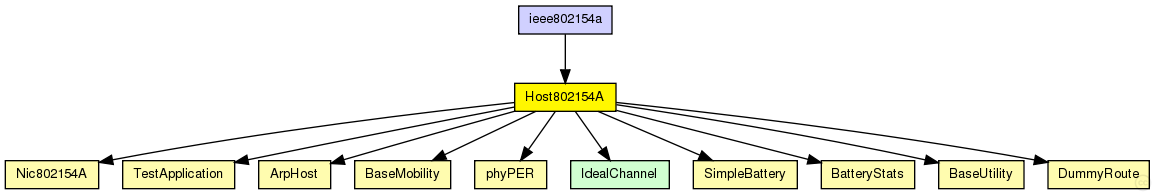

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// This host NED module models a host using an IEEE 802.15.4A correlation receiver.
//
// @author Jérôme Rousselot
//
// Citation of the following publication is appreciated if you use the MiXiM UWB PHY model
// for a publication of your own.
// J. Rousselot, J.-D. Decotignie, An ultra-wideband impulse radio PHY
// layer model for network simulation. SIMULATION January 2011 vol. 87 no. 1-2 82-112.
//
// For more information, see also:
//
// [1] J. Rousselot, J.-D. Decotignie, An ultra-wideband impulse radio PHY
// layer model for network simulation. SIMULATION January 2011 vol. 87 no.
// 1-2 82-112. <a href="http://dx.doi.org/10.1177/0037549710377767">http://dx.doi.org/10.1177/0037549710377767</a>.
//
// [2] J. Rousselot, Ultra Low Power Communication Protocols for UWB
// Impulse Radio Wireless Sensor Networks. EPFL Thesis 4720, 2010.
// <a href="http://infoscience.epfl.ch/record/147987">http://infoscience.epfl.ch/record/147987</a>.
//
// [3] J. Rousselot, J.-D. Decotignie, A High-Precision Ultra Wideband Impulse Radio Physical Layer Model
// for Network Simulation. Second International Omnet++ Workshop,Simu'TOOLS, Rome, March 2009.
// <a href="http://portal.acm.org/citation.cfm?id=1537714">http://portal.acm.org/citation.cfm?id=1537714</a>.
//
module Host802154A
{
    parameters:
        double numHosts; // total number of hosts in the network

        @display("bgb=356,318,white;bgp=10,10");
    gates:
        input radioIn;

    submodules:
        utility: BaseUtility {
            parameters:
                @display("p=292,60;i=block/blackboard");
        }
        stats: phyPER {
            @display("p=202,257");
        }
        batteryStats: BatteryStats {
            @display("p=292,257;i=block/circle");
        }
        battery: SimpleBattery {
            @display("p=292,186;i=block/control");
        }
        mobility: BaseMobility {
            parameters:
                @display("p=292,120;i=block/cogwheel");
        }
        nic: Nic802154A {
            parameters:
                @display("b=32,30;p=86,265;i=block/ifcard");
        }
        net: DummyRoute {
            parameters:
                @display("p=86,159");
        }
        arp: ArpHost {
            parameters:
                @display("p=202,186");
        }
        app: TestApplication {
            parameters:
                @display("p=86,60;i=block/app");

        }

    connections:
        net.lowerGateOut --> nic.upperGateIn;
        net.lowerGateIn <-- nic.upperGateOut;
        net.lowerControlOut --> nic.upperControlIn;
        net.lowerControlIn <-- nic.upperControlOut;

        net.upperGateOut --> app.lowerGateIn;
        net.upperGateIn <-- app.lowerGateOut;
        net.upperControlOut --> app.lowerControlIn;
        net.upperControlIn <-- app.lowerControlOut;


        radioIn --> nic.radioIn;



}
