Compound Module PhyMacHost

Package: org.mixim.examples.analogueModels
File: examples/analogueModels/PhyMacHost.ned

(no description)

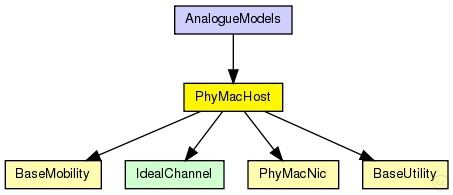

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

AnalogueModels (network)

This example shows how to use AnalogueModels.

Parameters:

Name	Type	Default value	Description
numHosts	double		total number of hosts in the network

Properties:

Name	Value	Description
display	bgb=180,200,white,,;bgp=10,10

Gates:

Name	Direction	Size	Description
radioIn	input

Unassigned submodule parameters:

Name	Type	Default value	Description
utility.coreDebug	bool		debug switch for the base framework
mobility.coreDebug	bool		debug switch for the core framework
mobility.x	double		x coordinate of the nodes' position (-1 = random)
mobility.y	double		y coordinate of the nodes' position (-1 = random)
mobility.z	double		z coordinate of the nodes' position (-1 = random)
nic.phy.coreDebug	bool		debug switch for core framework
nic.phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
nic.phy.headerLength	int	0	defines the length of the phy header (/preamble)
nic.phy.usePropagationDelay	bool		Should transmission delay be simulated?
nic.phy.thermalNoise	double		the strength of the thermal noise [dBm]
nic.phy.useThermalNoise	bool		should thermal noise be considered?
nic.phy.analogueModels	xml		Specification of the analogue models to use and their parameters
nic.phy.decider	xml		Specification of the decider to use and its parameters
nic.phy.sensitivity	double		The sensitivity of the physical layer [dBm]
nic.phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
nic.phy.timeRXToTX	double	0	switchTimes [s]:
nic.phy.timeRXToSleep	double	0
nic.phy.timeTXToRX	double	0
nic.phy.timeTXToSleep	double	0
nic.phy.timeSleepToRX	double	0
nic.phy.timeSleepToTX	double	0
nic.phy.initialRadioState	int	0	state the radio is initially in
nic.phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
nic.phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
nic.phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
nic.phy.initialRadioChannel	int	0	Initial radio channel.

Source code:

module PhyMacHost
{
    parameters:
        double numHosts; // total number of hosts in the network

        @display("bgb=180,200,white,,;bgp=10,10");
    gates:
        input radioIn;

    submodules:
        utility: BaseUtility {
            parameters:
                @display("p=130,60;i=block/blackboard");
        }
        mobility: BaseMobility {
            parameters:
                @display("p=130,130;i=block/cogwheel");
        }
        nic: PhyMacNic {
            parameters:
                @display("b=32,30;p=60,166;i=block/ifcard");
        }
    connections:

        radioIn --> nic.radioIn;

}
