Simple Module PhyLayerBattery

Package: org.mixim.modules.phy
File: modules/phy/PhyLayerBattery.ned

Extends PhyLayer module with power consumption support

Usage diagram:

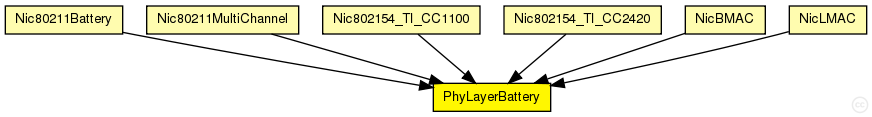

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

PhyLayer (simple module)

Physical layer module which knows how to initialize the Deciders and AnalogueModels from the modules directory. See the classes documentation for details.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

Nic80211Battery (compound module)	Based on Nic80211
Nic80211MultiChannel (compound module)	This NIC implements an 802.11 network interface card with multi channel support and power consumption. Note: This NIC does not model interference between adjacent channels!
Nic802154_TI_CC1100 (compound module)	This NIC implements a TI CC1100 network interface card using the CSMA protocol as specified in IEEE 802.15.4-2006.
Nic802154_TI_CC2420 (compound module)	This NIC implements a Texas Instruments CC 2420 802.15.4 network interface card using the CSMA protocol as specified in IEEE 802.15.4-2006.
NicBMAC (compound module)	This module implements a BMAC network interface card using the "BMACLayer" MAC layer module
NicLMAC (compound module)	This module implements a LMAC network interface card using the "LMacLayer" MAC layer module

Parameters:

Name	Type	Default value	Description
coreDebug	bool		debug switch for core framework
recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
headerLength	int	0	defines the length of the phy header (/preamble)
usePropagationDelay	bool		Should transmission delay be simulated?
thermalNoise	double		the strength of the thermal noise [dBm]
useThermalNoise	bool		should thermal noise be considered?
analogueModels	xml		Specification of the analogue models to use and their parameters
decider	xml		Specification of the decider to use and its parameters
sensitivity	double		The sensitivity of the physical layer [dBm]
maxTXPower	double		The maximum transimission power of the physical layer [mW]
timeRXToTX	double	0	switchTimes [s]:
timeRXToSleep	double	0
timeTXToRX	double	0
timeTXToSleep	double	0
timeSleepToRX	double	0
timeSleepToTX	double	0
initialRadioState	int	0	state the radio is initially in
radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
initialRadioChannel	int	0	Initial radio channel.
numActivities	int	5	the number of different power consuming activities the phy layer has change this parameter if your decider or physical layer uses more than the default 5 activities (sleep, rx, tx, switching, decoding)

Properties:

Name	Value	Description
class	PhyLayerBattery

Gates:

Name	Direction	Description
upperGateIn	input	from the MAC layer
upperGateOut	output	to the MAC layer
upperControlIn	input	control from the MAC layer
upperControlOut	output	control to the MAC layer
radioIn	input	for sendDirect from other physical layers

Source code:

//
// Extends PhyLayer module with power consumption support
//
simple PhyLayerBattery extends PhyLayer
{
    parameters:
        @class(PhyLayerBattery);

        // the number of different power consuming activities the phy layer has
        // change this parameter if your decider or physical layer uses more
        // than the default 5 activities (sleep, rx, tx, switching, decoding)
        int numActivities = default(5);
}
