Compound Module Nic80211MultiChannel

This NIC implements an 802.11 network interface card with multi channel support and power consumption. Note: This NIC does not model interference between adjacent channels!

See also: Mac80211MultiChannel, Decider80211MultiChannel

Author: Karl Wessel

Usage diagram:

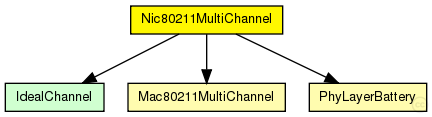

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// This NIC implements an 802.11 network interface card with multi channel
// support and power consumption.
// Note: This NIC does not model interference between adjacent channels!
//
// @see Mac80211MultiChannel, Decider80211MultiChannel
// @author Karl Wessel
//
module Nic80211MultiChannel like INic
{
    parameters:
        //name of the ConnectionManager module
        string connectionManagerName = default("");
        @display("i=block/ifcard");
        double sleepCurrent @unit(mA);
        double rxCurrent @unit(mA);
        double decodingCurrentDelta @unit(mA);
        double txCurrent @unit(mA);
        double setupRxCurrent @unit(mA);
        double setupTxCurrent @unit(mA);
        double rxTxCurrent @unit(mA);
        double txRxCurrent @unit(mA);
        double onCurrent @unit(mA) = default(0);

    gates:
        input upperGateIn; // to upper layers
        output upperGateOut; // from upper layers
        output upperControlOut; // control information
        input upperControlIn; // control information
        input radioIn; // radioIn gate for sendDirect

    submodules:
        mac: Mac80211MultiChannel {
            queueLength = default(20);
            bitrate = default(2E+6bps);
            autoBitrate = default(false);
            // values if no fading is modelled, gives at most 1% packet error rate
            snr2Mbit = default(1.46dB);
            snr5Mbit = default(2.6dB);
            snr11Mbit = default(5.68dB);
            neighborhoodCacheSize = default(30);
            neighborhoodCacheMaxAge = default(100s);
            txPower = default(110.11mW);

            @display("p=96,87;i=block/layer");
        }

        phy: PhyLayerBattery {
            headerLength = 192bit;
            sensitivity = default(-119.5dBm);
            decider = default(xmldoc("Nic80211MultiChannel_Decider.xml"));
            nbRadioChannels = default(15);
            initialRadioChannel = default(1);

            //Mac80211 does not support switching times
            timeRXToTX = 0s;
            timeRXToSleep = 0s;
            timeTXToRX = 0s;
            timeTXToSleep = 0s;
            timeSleepToRX = 0s;
            timeSleepToTX = 0s;
            @display("p=96,158;i=block/process;is=n");
        }

    connections:
        mac.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> upperGateOut;
        mac.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- upperGateIn;
        mac.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> upperControlOut;
        mac.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- upperControlIn;

        phy.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> mac.lowerGateIn;
        phy.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- mac.lowerGateOut;
        phy.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> mac.lowerControlIn;
        phy.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- mac.lowerControlOut;

        radioIn --> phy.radioIn;
}
