Compound Module Nic80211Battery

Based on Nic80211

Extends Nic80211 to use the Energy Framework to record battery consumption. The relevant changes for communicating with the Battery module are in PhyLayerBattery; core 80211 functionality is not changed.

parameters: note that the NIC module owns the hardware parameters to allow external access/alternate implementations.

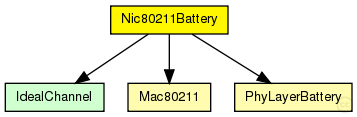

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Properties:

Gates:

Unassigned submodule parameters:

Source code:

//
// Based on Nic80211
//
// Extends Nic80211 to use the Energy Framework to record battery
// consumption.  The relevant changes for communicating with the
// Battery module are in PhyLayerBattery; core 80211 functionality
// is not changed.
//
// parameters: note that the NIC module owns the hardware parameters
// to allow external access/alternate implementations.
//
module Nic80211Battery like INic
{
    parameters:
        string connectionManagerName = default("");   //name of the ConnectionManager module
        double sleepCurrent @unit(mA);
        double rxCurrent @unit(mA);
        double decodingCurrentDelta @unit(mA);
        double txCurrent @unit(mA);
        double setupRxCurrent @unit(mA);
        double setupTxCurrent @unit(mA);
        double rxTxCurrent @unit(mA);
        double txRxCurrent @unit(mA);

        @display("i=block/ifcard");
    gates:
        input upperGateIn; // to upper layers
        output upperGateOut; // from upper layers
        output upperControlOut; // control information
        input upperControlIn; // control information
        input radioIn; // radioIn gate for sendDirect

    submodules:
        mac: Mac80211 {
            parameters:
                queueLength = default(20);
                bitrate = default(2E+6bps);
                autoBitrate = default(false);
                // values if no fading is modelled, gives at most 1% packet error rate
                snr2Mbit = default(1.46dB);
                snr5Mbit = default(2.6dB);
                snr11Mbit = default(5.68dB);
                neighborhoodCacheSize = default(30);
                neighborhoodCacheMaxAge = default(100s);
                txPower = default(110.11mW);
                @display("p=96,87;i=block/layer");
        }
        phy: PhyLayerBattery {
            parameters:
                headerLength = 192bit;
                sensitivity = default(-119.5dBm);
                decider = default(xmldoc("Nic80211_Decider.xml"));
                initialRadioChannel = default(1);
                nbRadioChannels = default(15); //1 to 14, 0 is invalid

                //Mac80211 does not support switching times
                timeRXToTX = 0s;
                timeRXToSleep = 0s;
                timeTXToRX = 0s;
                timeTXToSleep = 0s;
                timeSleepToRX = 0s;
                timeSleepToTX = 0s;
                @display("p=106,157;i=block/process_s");
        }

    connections:
        radioIn --> phy.radioIn;
        phy.upperGateIn <-- { @display("m=m,25,0,25,0"); } <-- mac.lowerGateOut;
        phy.upperGateOut --> { @display("m=m,73,0,50,50"); } --> mac.lowerGateIn;
        phy.upperControlOut --> mac.lowerControlIn;
        phy.upperControlIn <-- mac.lowerControlOut;

        mac.upperGateOut --> upperGateOut;
        mac.upperControlOut --> upperControlOut;
        mac.upperGateIn <-- upperGateIn;
        mac.upperControlIn <-- upperControlIn;
}
