Compound Module NicLMAC

Package: org.mixim.modules.nic
File: modules/nic/NicLMac.ned

This module implements a LMAC network interface card using the "LMacLayer" MAC layer module

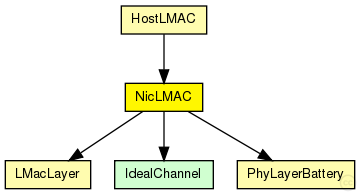

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

HostLMAC (compound module)

Example host module using a LMAC Network interface card.

Parameters:

Name	Type	Description
sleepCurrent	double	20 µA
rxCurrent	double
decodingCurrentDelta	double
txCurrent	double
setupRxCurrent	double
setupTxCurrent	double
rxTxCurrent	double
txRxCurrent	double

Gates:

Name	Direction	Description
upperGateIn	input	to upper layers
upperGateOut	output	from upper layers
upperControlOut	output	control information
upperControlIn	input	control information
radioIn	input	radioIn gate for sendDirect

Unassigned submodule parameters:

Name	Type	Default value	Description
mac.notAffectedByHostState	bool	false
mac.coreDebug	bool		debug switch
mac.headerLength	double		length of the MAC packet header (in bits)
mac.debug	bool	false	enable per module debug
mac.slotDuration	double	100ms	how long is a slot?
mac.queueLength	double	10	length of MAC header
mac.defaultChannel	double	0	default channel
mac.bitrate	double	19200bps	bit rate
mac.reservedMobileSlots	int	2
mac.numSlots	int	64
mac.txPower	double	50
phy.coreDebug	bool		debug switch for core framework
phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
phy.headerLength	int	0	defines the length of the phy header (/preamble)
phy.usePropagationDelay	bool		Should transmission delay be simulated?
phy.thermalNoise	double		the strength of the thermal noise [dBm]
phy.useThermalNoise	bool		should thermal noise be considered?
phy.analogueModels	xml		Specification of the analogue models to use and their parameters
phy.decider	xml		Specification of the decider to use and its parameters
phy.sensitivity	double		The sensitivity of the physical layer [dBm]
phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
phy.timeRXToTX	double	0	switchTimes [s]:
phy.timeRXToSleep	double	0
phy.timeTXToRX	double	0
phy.timeTXToSleep	double	0
phy.timeSleepToRX	double	0
phy.timeSleepToTX	double	0
phy.initialRadioState	int	0	state the radio is initially in
phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
phy.initialRadioChannel	int	0	Initial radio channel.
phy.numActivities	int	5	the number of different power consuming activities the phy layer has change this parameter if your decider or physical layer uses more than the default 5 activities (sleep, rx, tx, switching, decoding)

Source code:

//
// This module implements a LMAC network interface card using
// the "LMacLayer" MAC layer module
//
module NicLMAC like INic
{
    parameters:
        double sleepCurrent @unit(mA); // 20 µA
        double rxCurrent @unit(mA);
        double decodingCurrentDelta @unit(mA);
        double txCurrent @unit(mA);
        double setupRxCurrent @unit(mA);
        double setupTxCurrent @unit(mA);
        double rxTxCurrent @unit(mA);
        double txRxCurrent @unit(mA);

    gates:
        input upperGateIn; // to upper layers
        output upperGateOut; // from upper layers
        output upperControlOut; // control information
        input upperControlIn; // control information
        input radioIn; // radioIn gate for sendDirect
    submodules:
        mac: LMacLayer {
            parameters:
                @display("p=96,87;i=block/layer");
        }

        phy: PhyLayerBattery {
            @display("p=106,157;i=block/process_s");
        }

    connections:
        mac.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> upperGateOut;
        mac.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- upperGateIn;
        mac.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> upperControlOut;
        mac.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- upperControlIn;

        phy.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> mac.lowerGateIn;
        phy.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- mac.lowerGateOut;
        phy.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> mac.lowerControlIn;
        phy.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- mac.lowerControlOut;

        radioIn --> phy.radioIn;

}
