Network AnalogueModels

This example shows how to use AnalogueModels.

It contains the following modules/classes:

RandomFreqTimeModel: An AnalogueModel implementation which defines random attunation values in time and frequency using the MultiDimMapping.

RandomFrequencyOnlyModel: An AnalogueModel implementation which defines random attenuation values in the frequency domain by using the MultiDimMapping class. Since every mapping represented by the Mapping interface of MiXiM has to be defined over time this shows how to "simulate" mappings which arent't defined over time.

ThresholdDecider: A quick and dirty implementation of a very verbose Decider. It is only used for a better illustration of how the AnalogueModels affect the signal during runtime and shouldn't be used as a template for an actual Decider.

SamplePhyLayer: A PhyLayer subclass which knows how to initialize our own AnalogueModels and Decider.

SimpleMacLayer: A very basic implementation of a Mac layer without using the actual BaseMacLayer. This is only to keep the example independent from the BaseMacLayer, normally you whould just use the BaseMacLayer.

The network itself consists of only two host which keep ping-pong-ing messages between each other.

The simulation has the following run configurations:

• "General" - infinite ping-pong-ing without simulation of propagation delay
• "WithPropDelay" - same with simulation of propagation delay
• "PerfTest" - meant to be used when called with CmdEnv for some performance testing (time limited)

See the comments in the source for more details.

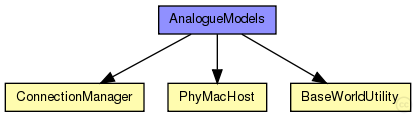

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Properties:

Unassigned submodule parameters:

Source code:

//
//This example shows how to use AnalogueModels.
//
//It contains the following modules/classes:
//
//RandomFreqTimeModel:
//An AnalogueModel implementation which defines random attunation values
//in time and frequency using the MultiDimMapping.
//
//RandomFrequencyOnlyModel:
//An AnalogueModel implementation which defines random attenuation values
//in the frequency domain by using the MultiDimMapping class.
//Since every mapping represented by the Mapping interface of MiXiM has to be
//defined over time this shows how to "simulate" mappings which arent't
//defined over time.
//
//ThresholdDecider:
//A quick and dirty implementation of a very verbose Decider. It is only
//used for a better illustration of how the AnalogueModels affect the signal
//during runtime and shouldn't be used as a template for an actual Decider.
//
//SamplePhyLayer:
//A PhyLayer subclass which knows how to initialize our own AnalogueModels
//and Decider.
//
//SimpleMacLayer:
//A very basic implementation of a Mac layer without using the actual
//BaseMacLayer. This is only to keep the example independent from the
//BaseMacLayer, normally you whould just use the BaseMacLayer.
//
//
//The network itself consists of only two host which keep ping-pong-ing
//messages between each other.
//
//The simulation has the following run configurations:
//
//- "General" 		- infinite ping-pong-ing without simulation of propagation delay
//- "WithPropDelay"	- same with simulation of propagation delay
//- "PerfTest"		- meant to be used when called with CmdEnv for some performance
//			 		  testing (time limited)
//
//
//See the comments in the source for more details.
//

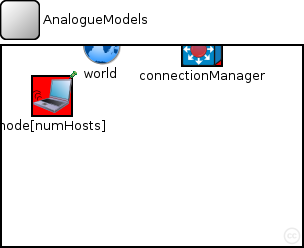

network AnalogueModels
{
    parameters:
        double playgroundSizeX @unit(m); // x size of the area the nodes are in (in meters)
        double playgroundSizeY @unit(m); // y size of the area the nodes are in (in meters)
        double playgroundSizeZ @unit(m); // z size of the area the nodes are in (in meters)
        double numHosts; // total number of hosts in the network

        @display("bgb=$playgroundSizeX,$playgroundSizeY,white,,;bgp=10,50");
    submodules:
        world: BaseWorldUtility {
            parameters:
                playgroundSizeX = playgroundSizeX;
                playgroundSizeY = playgroundSizeY;
                playgroundSizeZ = playgroundSizeZ;
                @display("p=100,0;i=misc/globe");

        }
        connectionManager: ConnectionManager {
            parameters:
                @display("p=200,0;b=42,42,rect,red,,;i=abstract/multicast");

        }
        node[numHosts]: PhyMacHost {
            parameters:
                numHosts = numHosts;
                @display("p=50,50;b=42,42,rect,red,,;i=device/wifilaptop");

        }
    connections allowunconnected:
                         // all connections and gates are to be generated dynamically

}
