Compound Module HostLMAC

Package: org.mixim.modules.node
File: modules/node/HostLMAC.ned

Example host module using a LMAC Network interface card.

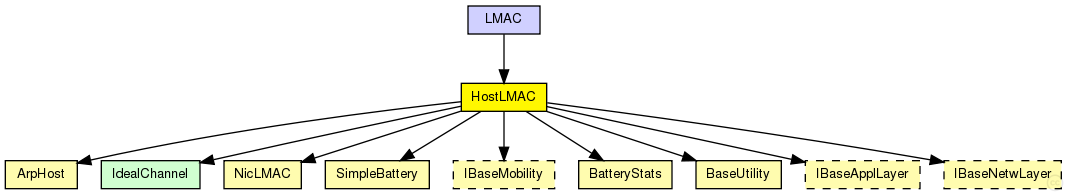

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

LMAC (network)

(no description)

Parameters:

Name	Type	Description
applType	string	type of the application layer
netwType	string	type of the network layer
mobType	string	type of the mobility module

Properties:

Name	Value	Description
display	bgb=244,294,white

Gates:

Name	Direction	Size	Description
radioIn	input		gate for sendDirect

Unassigned submodule parameters:

Name	Type	Default value	Description
utility.coreDebug	bool		debug switch for the base framework
arp.coreDebug	bool		debug switch for the core framework
arp.debug	bool	false	enable debugging for this module
arp.offset	int	0	Adds an offset to node addresses
mobility.x	double		x coordinate of the nodes' position (-1 = random)
mobility.y	double		y coordinate of the nodes' position (-1 = random)
mobility.z	double		z coordinate of the nodes' position (-1 = random)
appl.headerLength	int		length of the application message header (in bits)
net.stats	bool		stats switch
net.headerLength	double		length of the network packet header (in bits)
nic.mac.notAffectedByHostState	bool	false
nic.mac.coreDebug	bool		debug switch
nic.mac.headerLength	double		length of the MAC packet header (in bits)
nic.mac.debug	bool	false	enable per module debug
nic.mac.slotDuration	double	100ms	how long is a slot?
nic.mac.queueLength	double	10	length of MAC header
nic.mac.defaultChannel	double	0	default channel
nic.mac.bitrate	double	19200bps	bit rate
nic.mac.reservedMobileSlots	int	2
nic.mac.numSlots	int	64
nic.mac.txPower	double	50
nic.phy.coreDebug	bool		debug switch for core framework
nic.phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
nic.phy.headerLength	int	0	defines the length of the phy header (/preamble)
nic.phy.usePropagationDelay	bool		Should transmission delay be simulated?
nic.phy.thermalNoise	double		the strength of the thermal noise [dBm]
nic.phy.useThermalNoise	bool		should thermal noise be considered?
nic.phy.analogueModels	xml		Specification of the analogue models to use and their parameters
nic.phy.decider	xml		Specification of the decider to use and its parameters
nic.phy.sensitivity	double		The sensitivity of the physical layer [dBm]
nic.phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
nic.phy.timeRXToTX	double	0	switchTimes [s]:
nic.phy.timeRXToSleep	double	0
nic.phy.timeTXToRX	double	0
nic.phy.timeTXToSleep	double	0
nic.phy.timeSleepToRX	double	0
nic.phy.timeSleepToTX	double	0
nic.phy.initialRadioState	int	0	state the radio is initially in
nic.phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
nic.phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
nic.phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
nic.phy.initialRadioChannel	int	0	Initial radio channel.
nic.phy.numActivities	int	5	the number of different power consuming activities the phy layer has change this parameter if your decider or physical layer uses more than the default 5 activities (sleep, rx, tx, switching, decoding)
batteryStats.debug	bool		write per-activity and per-device statistics to omnetpp.sca (if false, only total energy and lifetime are written)
batteryStats.detail	bool		subscribe to battery status and record time series data in omnetpp.vec (resolution depends on battery's publishDelta)
batteryStats.timeSeries	bool
battery.debug	bool
battery.nominal	double		nominal battery capacity
battery.capacity	double		battery capacity
battery.voltage	double		nominal voltage
battery.resolution	double		capacity is updated at least every resolution time
battery.publishDelta	double		if > 0, capacity is published to the BB each publishTime interval
battery.publishTime	double		number of modules that will draw energy from the battery
battery.numDevices	int

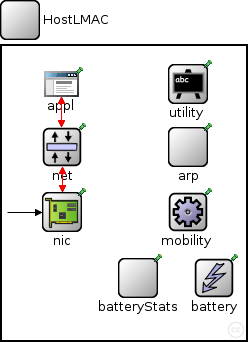

Source code:

//
// Example host module using a LMAC Network interface card.
//
module HostLMAC
{
    parameters:
        string applType; //type of the application layer
        string netwType; //type of the network layer
        string mobType; //type of the mobility module
        @display("bgb=244,294,white");
    gates:
        input radioIn; // gate for sendDirect
    submodules:
        utility: BaseUtility {
            parameters:
                @display("p=186,38;b=24,24,rect,black;i=block/blackboard");
        }
        arp: ArpHost {
            parameters:
                @display("p=186,101;b=24,24,rect,blue;i=block/process");
        }
        mobility: <mobType> like IBaseMobility {
            parameters:
                @display("p=186,166;i=block/cogwheel");
        }
        appl: <applType> like IBaseApplLayer {
            parameters:
                @display("p=59,38;i=app");
        }
        net: <netwType> like IBaseNetwLayer {
            parameters:
                @display("p=60,101;i=block/layer");
        }
        nic: NicLMAC {
            parameters:
                @display("p=60,166;i=block/ifcard");
        }
        batteryStats: BatteryStats {
            @display("p=136,232");
        }
        battery: SimpleBattery {
            @display("p=212,232");
        }
    connections:
        nic.upperGateOut --> net.lowerGateIn;
        nic.upperGateIn <-- net.lowerGateOut;
        nic.upperControlOut --> { @display("ls=red;m=m,70,0,70,0"); } --> net.lowerControlIn;
        nic.upperControlIn <-- { @display("ls=red;m=m,70,0,70,0"); } <-- net.lowerControlOut;

        net.upperGateOut --> appl.lowerGateIn;
        net.upperGateIn <-- appl.lowerGateOut;
        net.upperControlOut --> { @display("ls=red;m=m,70,0,70,0"); } --> appl.lowerControlIn;
        net.upperControlIn <-- { @display("ls=red;m=m,70,0,70,0"); } <-- appl.lowerControlOut;

        radioIn --> nic.radioIn;

}
