Module Interface IBaseApplLayer

Package: org.mixim.base.modules
File: base/modules/IBaseApplLayer.ned

Interface for application layer modules

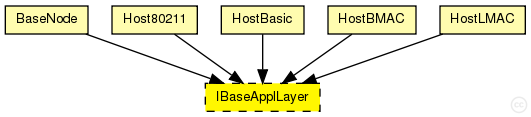

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

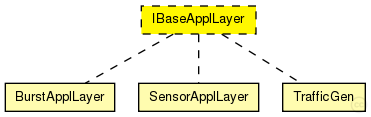

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

BaseNode (compound module)	(no description)
Host80211 (compound module)	Example host module using an 802.11 Network interface card.
HostBasic (compound module)	Example host module for a basic MiXiM host with configurable NIC, network layer, application layer and mobility module.
HostBMAC (compound module)	Example host module using a BMAC Network interface card.
HostLMAC (compound module)	Example host module using a LMAC Network interface card.

Parameters:

Name	Type	Default value	Description
headerLength	int		length of the application message header (in bits)

Source code:

// Interface for application layer modules
moduleinterface IBaseApplLayer
{
    parameters:
        int headerLength @unit("bit"); // length of the application message header (in bits)
    gates:
        input lowerGateIn; // from network layer
        output lowerGateOut; // to network layer
        input lowerControlIn; // control from network layer
        output lowerControlOut; // control to network layer
}
