Simple Module CSMA802154

Package: org.mixim.modules.mac
File: modules/mac/CSMA802154.ned

IEEE 802.15.4-2006 non-beacon enabled CSMA protocol This model was independently validated on a wireless sensor network testbed. For more information, see Accurate Timeliness Simulations for Real-Time Wireless Sensor Networks, J. Rousselot, J.-D. Decotignie, M. Aoun, P. van der Stok, R. Serna Oliver, G. Fohler. In Proceedings of the 2009 Third UKSim European Symposium on Computer Modeling and Simulation.

http://dx.doi.org/10.1109/EMS.2009.34

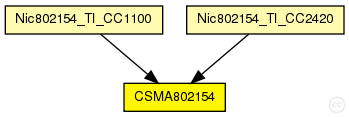

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

csma (simple module)

Generic CSMA protocol supporting Mac-ACKs as well as constant, linear or exponential backoff times.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

Nic802154_TI_CC1100 (compound module)	This NIC implements a TI CC1100 network interface card using the CSMA protocol as specified in IEEE 802.15.4-2006.
Nic802154_TI_CC2420 (compound module)	This NIC implements a Texas Instruments CC 2420 802.15.4 network interface card using the CSMA protocol as specified in IEEE 802.15.4-2006.

Parameters:

Name	Type	Default value	Description
notAffectedByHostState	bool	false
coreDebug	bool		debug switch
headerLength	double	72 bit	length of the MAC packet header (in bits)
debug	bool	false	debug switch
stats	bool	true
trace	bool	false
queueLength	double	100	size of the MAC queue (maximum number of packets in Tx buffer)
bitrate	double	250000 bps	bit rate
ccaDetectionTime	double	0.000128 s	Clear Channel Assessment detection time
rxSetupTime	double		Time to setup radio to reception state
aTurnaroundTime	double	0.000192 s	Time to switch radio from Rx to Tx state
txPower	double		tx power [mW]
useMACAcks	bool	true	Send/Expect MAC acks for unicast traffic?
macMaxFrameRetries	double	3	maximum number of frame retransmission only used when usage of MAC acks is enabled
macAckWaitDuration	double	0.00056 s	time to wait for an acknowledgement after transmitting a unicast frame. only used when usage of MAC acks is enabled
ackLength	double	40 bit	complete MAC ack message length (in bits) (! headerLength is not added to this) only used when usage of MAC acks is enabled
sifs	double	0.000192 s	simple interframe space. Time to wait between receiving a frame and acknowledging it. Should be bigger than the maximum time for switching between Tx and Rx at the receiver. only used when usage of MAC acks is enabled
backoffMethod	string	"exponential"	backoff method to use: constant, linear or exponential
macMaxCSMABackoffs	double	4	maximum backoffs
aUnitBackoffPeriod	double	0.00032 s	base unit for all backoff calculations
contentionWindow	int	2	# of backoff periods of the initial contention window (for linear and constant backoff method only)
macMinBE	double	3	minimum backoff exponent (for exponential backoff method only)
macMaxBE	double	5	maximum backoff exponent (for exponential backoff method only)

Properties:

Name	Value	Description
class	CSMA802154

Gates:

Name	Direction	Description
upperGateIn	input	from upper layer
upperGateOut	output	to uppe layer
upperControlIn	input	control from upper layer
upperControlOut	output	control to upper layer
lowerGateIn	input	from lower layer
lowerGateOut	output	to lower layer
lowerControlIn	input	control from lower layer
lowerControlOut	output	control to lower layer

Source code:

//
// IEEE 802.15.4-2006 non-beacon enabled CSMA protocol
// This model was independently validated on a wireless sensor network testbed.
// For more information, see
// Accurate Timeliness Simulations for Real-Time Wireless Sensor Networks,
// J. Rousselot, J.-D. Decotignie, M. Aoun, P. van der Stok, R. Serna Oliver,
// G. Fohler. In Proceedings of the 2009 Third UKSim European Symposium on Computer
// Modeling and Simulation.
//
// http://dx.doi.org/10.1109/EMS.2009.34
//
simple CSMA802154 extends csma
{
    parameters:
        @class(CSMA802154);

        sifs @unit(s) = 0.000192 s; // 12 symbols
        headerLength @unit(bit) = 72 bit;
        queueLength = default(100);
        bitrate @unit(bps) = 250000 bps;
        ackLength @unit(bit) = 40 bit;
        macMaxCSMABackoffs = default(4);  // takes values between 0 and 5
        macMaxFrameRetries = default(3);  // takes values between 0 and 7
        macAckWaitDuration @unit(s) = 0.00056 s;  // 1+12+10+12 symbols
        ccaDetectionTime @unit(s) = 0.000128 s; // 8 symbols
        aTurnaroundTime @unit(s) = 0.000192 s;    // 12 symbols
        //txPower @unit(mW);
        useMACAcks = default(true);

        backoffMethod = "exponential";
        aUnitBackoffPeriod @unit(s) = 0.00032 s;
        macMaxBE = default(5);	// takes values between 3 and 8
        macMinBE = default(3);	// takes values between 0 and macMaxBE
}
