Compound Module PhyMacNic

Package: org.mixim.examples.analogueModels
File: examples/analogueModels/PhyMacNic.ned

(no description)

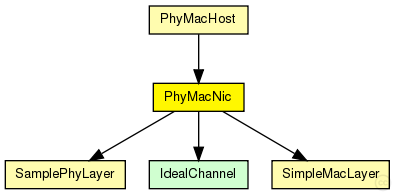

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

PhyMacHost (compound module)

(no description)

Parameters:

Name	Type	Default value	Description
connectionManagerName	string		name of the ConnectionManager module

Properties:

Name	Value	Description
display	bgb=101,150,white,,;bgp=10,10

Gates:

Name	Direction	Size	Description
radioIn	input		radioIn gate for sendDirect

Unassigned submodule parameters:

Name	Type	Default value	Description
phy.coreDebug	bool		debug switch for core framework
phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
phy.headerLength	int	0	defines the length of the phy header (/preamble)
phy.usePropagationDelay	bool		Should transmission delay be simulated?
phy.thermalNoise	double		the strength of the thermal noise [dBm]
phy.useThermalNoise	bool		should thermal noise be considered?
phy.analogueModels	xml		Specification of the analogue models to use and their parameters
phy.decider	xml		Specification of the decider to use and its parameters
phy.sensitivity	double		The sensitivity of the physical layer [dBm]
phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
phy.timeRXToTX	double	0	switchTimes [s]:
phy.timeRXToSleep	double	0
phy.timeTXToRX	double	0
phy.timeTXToSleep	double	0
phy.timeSleepToRX	double	0
phy.timeSleepToTX	double	0
phy.initialRadioState	int	0	state the radio is initially in
phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
phy.initialRadioChannel	int	0	Initial radio channel.

Source code:

module PhyMacNic
{
    parameters:
        string connectionManagerName; 	//name of the ConnectionManager module

        @display("bgb=101,150,white,,;bgp=10,10");
    gates:
        input radioIn; // radioIn gate for sendDirect

    submodules:
        phy: SamplePhyLayer {
            parameters:
                @display("p=60,120;b=80,30,rect,white,,");

        }
        mac: SimpleMacLayer {
            parameters:
                @display("p=60,45;b=80,30,rect,white,,");

        }
    connections:
        phy.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> mac.lowerGateIn;
        phy.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- mac.lowerGateOut;
        phy.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> mac.lowerControlIn;
        phy.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- mac.lowerControlOut;

        radioIn --> phy.radioIn;

}
