Compound Module Nic802154A

Package: org.mixim.modules.nic
File: modules/nic/Nic802154A.ned

(no description)

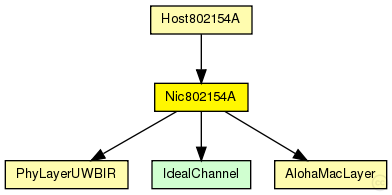

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

Host802154A (compound module)

This host NED module models a host using an IEEE 802.15.4A correlation receiver.

Parameters:

Name	Type	Default value	Description
connectionManagerName	string		name of the ConnectionManager module
sleepCurrent	double	.00303 mA	power consumption from boards (at 3.3V)
rxCurrent	double	9.1 mA
syncCurrent	double	30.3 mA
txCurrent	double	0.303 mA
setupRxCurrent	double	9.1 mA
setupTxCurrent	double	0.303 mA
rxTxCurrent	double	9.1 mA
txRxCurrent	double	9.1 mA

Properties:

Name	Value	Description
display	bgb=101,150,white,,;bgp=10,10

Gates:

Name	Direction	Description
radioIn	input	radioIn gate for sendDirect
upperGateIn	input	uppergateIn for incoming messages from network layer
upperControlIn	input	uppergateCtrlIn for incoming control messages from network layer
upperGateOut	output	uppergateOut to send data messages to network layer
upperControlOut	output	uppergateCtrlOut to send control messages to network layer

Unassigned submodule parameters:

Name	Type	Default value	Description
phy.coreDebug	bool		debug switch for core framework
phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
phy.headerLength	int	0	defines the length of the phy header (/preamble)
phy.usePropagationDelay	bool		Should transmission delay be simulated?
phy.thermalNoise	double		the strength of the thermal noise [dBm]
phy.useThermalNoise	bool		should thermal noise be considered?
phy.analogueModels	xml		Specification of the analogue models to use and their parameters
phy.decider	xml		Specification of the decider to use and its parameters
phy.sensitivity	double		The sensitivity of the physical layer [dBm]
phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
phy.timeRXToTX	double	0	switchTimes [s]:
phy.timeRXToSleep	double	0
phy.timeTXToRX	double	0
phy.timeTXToSleep	double	0
phy.timeSleepToRX	double	0
phy.timeSleepToTX	double	0
phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
phy.initialRadioChannel	int	0	Initial radio channel.
mac.notAffectedByHostState	bool	false
mac.coreDebug	bool		debug switch
mac.headerLength	double		length of the MAC packet header (in bits)
mac.debug	bool	false	debug switch
mac.stats	bool	true
mac.trace	bool	false
mac.RSDecoder	bool	true
mac.packetsAlwaysValid	bool	false
mac.PRF	int	4	Pulse repetition frequency, either 4 or 16 MHz currently
mac.minBE	int	3	min backoff exponent
mac.maxBE	int	8	max backoff exponent

Source code:

module Nic802154A like INic
{
    parameters:
        string connectionManagerName; 	//name of the ConnectionManager module
        // power consumption from boards (at 3.3V)
        double sleepCurrent @unit(mA) = .00303 mA; // 0.021 µA
        double rxCurrent @unit(mA) = 9.1 mA;
        double syncCurrent @unit(mA) = 30.3 mA;
        double txCurrent @unit(mA) = 0.303 mA;
        double setupRxCurrent @unit(mA) = 9.1 mA;
        double setupTxCurrent @unit(mA) = 0.303 mA;
        double rxTxCurrent @unit(mA) = 9.1 mA;
        double txRxCurrent @unit(mA) = 9.1 mA;


        @display("bgb=101,150,white,,;bgp=10,10");
    gates:
        input radioIn; // radioIn gate for sendDirect
        input upperGateIn; // uppergateIn for incoming messages from network layer
        input upperControlIn; // uppergateCtrlIn for incoming control messages from network layer
        output upperGateOut; // uppergateOut to send data messages to network layer
        output upperControlOut; // uppergateCtrlOut to send control messages to network layer

    submodules:
        phy: PhyLayerUWBIR {
            parameters:
                @display("p=60,120;b=80,30,rect,white,,");
                initialRadioState = 4; // initializes radio state to SYNC

        }
        mac: AlohaMacLayer {
            parameters:
                maxRetries = 3;
                @display("p=60,45;b=80,30,rect,white,,");
        }
    connections:
        phy.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> mac.lowerGateIn;
        phy.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- mac.lowerGateOut;
        phy.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> mac.lowerControlIn;
        phy.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- mac.lowerControlOut;

        radioIn --> phy.radioIn;

        upperGateIn --> mac.upperGateIn;
        upperControlIn --> mac.upperControlIn;
        upperGateOut <-- mac.upperGateOut;
        upperControlOut <-- mac.upperControlOut;

}
