Compound Module HostBasic

Package: org.mixim.modules.node
File: modules/node/HostBasic.ned

Example host module for a basic MiXiM host with configurable NIC, network layer, application layer and mobility module.

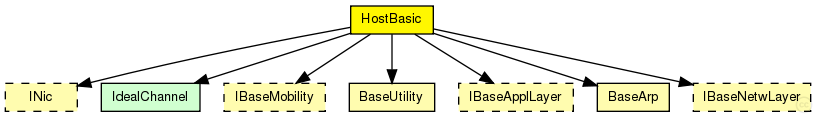

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Name	Type	Description
applType	string	type of the application layer
netwType	string	type of the network layer
mobType	string	type of the mobility module
nicType	string	type of the NIC module

Properties:

Name	Value	Description
display	bgb=,,white;i=device/laptop;b=40,40,rect

Gates:

Name	Direction	Size	Description
radioIn	input		gate for sendDirect

Unassigned submodule parameters:

Name	Type	Description
utility.coreDebug	bool	debug switch for the base framework
arp.coreDebug	bool	debug switch for the core framework
mobility.x	double	x coordinate of the nodes' position (-1 = random)
mobility.y	double	y coordinate of the nodes' position (-1 = random)
mobility.z	double	z coordinate of the nodes' position (-1 = random)
appl.headerLength	int	length of the application message header (in bits)
net.stats	bool	stats switch
net.headerLength	double	length of the network packet header (in bits)

Source code:

//
// Example host module for a basic MiXiM host with configurable NIC, network
// layer, application layer and mobility module.
//
module HostBasic
{
    parameters:
        string applType; //type of the application layer
        string netwType; //type of the network layer
        string mobType; //type of the mobility module
        string nicType; //type of the NIC module
        @display("bgb=,,white;i=device/laptop;b=40,40,rect");
    gates:
        input radioIn; // gate for sendDirect
    submodules:
        utility: BaseUtility {
            parameters:
                @display("p=130,38;b=24,24,rect,black;i=block/blackboard");
        }
        arp: BaseArp {
            parameters:
                @display("p=130,108;b=24,24,rect,blue;i=block/process");
        }
        mobility: <mobType> like IBaseMobility {
            parameters:
                @display("p=130,172;i=block/cogwheel");
        }
        appl: <applType> like IBaseApplLayer {
            parameters:
                @display("p=60,50;i=app");
        }
        net: <netwType> like IBaseNetwLayer {
            parameters:
                @display("p=60,108;i=block/layer");
        }
        nic: <nicType> like INic {
            parameters:
                @display("p=60,166;i=block/ifcard");
        }
    connections:
        nic.upperGateOut --> net.lowerGateIn;
        nic.upperGateIn <-- net.lowerGateOut;
        nic.upperControlOut --> { @display("ls=red;m=m,70,0,70,0"); } --> net.lowerControlIn;
        nic.upperControlIn <-- { @display("ls=red;m=m,70,0,70,0"); } <-- net.lowerControlOut;

        net.upperGateOut --> appl.lowerGateIn;
        net.upperGateIn <-- appl.lowerGateOut;
        net.upperControlOut --> { @display("ls=red;m=m,70,0,70,0"); } --> appl.lowerControlIn;
        net.upperControlIn <-- { @display("ls=red;m=m,70,0,70,0"); } <-- appl.lowerControlOut;

        radioIn --> nic.radioIn;

}
