Network BaseNetwork

This example shows the basic structure of an network using MiXiM.

The network consists of three hosts which use the CSMAMacLayer as MAC layer, "SimplePathlossModel" as only AnalogueModel and a SNRThresholdDecider as Decider.

The used Network- and Application layer can be defined in the omnetpp.ini. As default the BaseNetwLayer and BurstApplLayer are used.

You can use this network as an template for you own simulation.

Usage diagram:

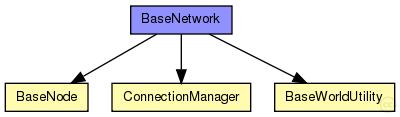

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

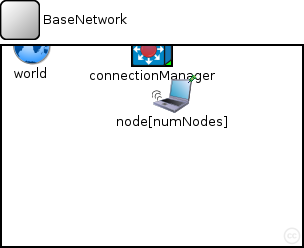

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Properties:

Unassigned submodule parameters:

Source code:

//
//This example shows the basic structure of an network using MiXiM.
//
//The network consists of three hosts which use the CSMAMacLayer as MAC layer,
//"SimplePathlossModel" as only AnalogueModel and a SNRThresholdDecider as Decider.
//
//The used Network- and Application layer can be defined in the omnetpp.ini. As default
//the BaseNetwLayer and BurstApplLayer are used.
//
//You can use this network as an template for you own simulation.
//
network BaseNetwork
{
    parameters:
        double playgroundSizeX @unit(m); // x size of the area the nodes are in (in meters)
        double playgroundSizeY @unit(m); // y size of the area the nodes are in (in meters)
        double playgroundSizeZ @unit(m); // z size of the area the nodes are in (in meters)
        double numNodes; // total number of hosts in the network

        @display("bgb=$playgroundSizeX,$playgroundSizeY,white;bgp=0,0");
    submodules:
        connectionManager: ConnectionManager {
            parameters:
                @display("p=150,0;b=42,42,rect,green,,;i=abstract/multicast");
        }
        world: BaseWorldUtility {
            parameters:
                playgroundSizeX = playgroundSizeX;
                playgroundSizeY = playgroundSizeY;
                playgroundSizeZ = playgroundSizeZ;
                @display("p=30,0;i=misc/globe");
        }
        node[numNodes]: BaseNode {
            parameters:
                @display("p=170,50;i=device/wifilaptop");
        }
    connections allowunconnected:

}
