Simple Module BaseNetwLayer

Package: org.mixim.base.modules
File: base/modules/BaseNetwLayer.ned

Base module for every network layer module

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

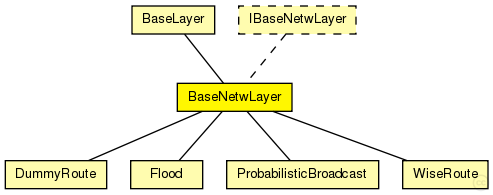

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

BaseLayer (simple module)

Base module for all layer modules. Defines the in and out gates

Known subclasses:

DummyRoute (simple module)	Placeholder module that simply "translates" netwControlInfo to macControlInfo.
Flood (simple module)	A simple flooding protocol for network-level broadcast.
ProbabilisticBroadcast (simple module)	Multi-hop ad-hoc data dissemination protocol based on probabilistic broadcast.
WiseRoute (simple module)	Wiseroute is a simple loop-free routing algorithm that builds a routing tree from a central network point, designed for sensor networks and convergecast traffic.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

PhyMacHost (compound module)

(no description)

Parameters:

Name	Type	Default value	Description
notAffectedByHostState	bool	false
coreDebug	bool		debug switch for core framework
stats	bool		stats switch
headerLength	double		length of the network packet header (in bits)

Properties:

Name	Value	Description
class	BaseNetwLayer

Gates:

Name	Direction	Description
upperGateIn	input	from upper layer
upperGateOut	output	to uppe layer
upperControlIn	input	control from upper layer
upperControlOut	output	control to upper layer
lowerGateIn	input	from lower layer
lowerGateOut	output	to lower layer
lowerControlIn	input	control from lower layer
lowerControlOut	output	control to lower layer

Source code:

// Base module for every network layer module
simple BaseNetwLayer extends BaseLayer like IBaseNetwLayer
{
    parameters:
        @class(BaseNetwLayer);

        bool coreDebug; // debug switch for core framework
        bool stats; // stats switch
        double headerLength @unit(bit); // length of the network packet header (in bits)
}
