Simple Module BasePhyLayer

Package: org.mixim.base.phyLayer
File: base/phyLayer/BasePhyLayer.ned

Basic physical layer module. See the class "BasePhyLayer" documentation.

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

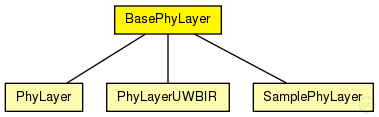

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Known subclasses:

PhyLayer (simple module)	Physical layer module which knows how to initialize the Deciders and AnalogueModels from the modules directory. See the classes documentation for details.
PhyLayerUWBIR (simple module)	A physical layer that models an Ultra Wideband Impulse Radio wireless communication system.
SamplePhyLayer (simple module)	(no description)

Parameters:

Name	Type	Default value	Description
coreDebug	bool		debug switch for core framework
recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
headerLength	int	0	defines the length of the phy header (/preamble)
usePropagationDelay	bool		Should transmission delay be simulated?
thermalNoise	double		the strength of the thermal noise [dBm]
useThermalNoise	bool		should thermal noise be considered?
analogueModels	xml		Specification of the analogue models to use and their parameters
decider	xml		Specification of the decider to use and its parameters
sensitivity	double		The sensitivity of the physical layer [dBm]
maxTXPower	double		The maximum transimission power of the physical layer [mW]
timeRXToTX	double	0	switchTimes [s]:
timeRXToSleep	double	0
timeTXToRX	double	0
timeTXToSleep	double	0
timeSleepToRX	double	0
timeSleepToTX	double	0
initialRadioState	int	0	state the radio is initially in
radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
initialRadioChannel	int	0	Initial radio channel.

Gates:

Name	Direction	Description
upperGateIn	input	from the MAC layer
upperGateOut	output	to the MAC layer
upperControlIn	input	control from the MAC layer
upperControlOut	output	control to the MAC layer
radioIn	input	for sendDirect from other physical layers

Source code:

// Basic physical layer module.
// See the class "BasePhyLayer" documentation.
simple BasePhyLayer
{
    parameters:
        bool coreDebug; //debug switch for core framework

        bool recordStats = default(false); //enable/disable tracking of statistics (eg. cOutvectors)
        int headerLength @unit(bit) = default(0); //defines the length of the phy header (/preamble)

        bool usePropagationDelay;		//Should transmission delay be simulated?
        double thermalNoise @unit(dBm);	//the strength of the thermal noise [dBm]
        bool useThermalNoise;			//should thermal noise be considered?

        xml analogueModels; 			//Specification of the analogue models to use and their parameters
        xml decider;					//Specification of the decider to use and its parameters

        double sensitivity @unit(dBm);	//The sensitivity of the physical layer [dBm]
        double maxTXPower @unit(mW);	//The maximum transimission power of the physical layer [mW]

        //switchTimes [s]:
        double timeRXToTX @unit(s) = default(0);
        double timeRXToSleep @unit(s) = default(0);

        double timeTXToRX @unit(s) = default(0);
        double timeTXToSleep @unit(s) = default(0);

        double timeSleepToRX @unit(s) = default(0);
        double timeSleepToTX @unit(s) = default(0);

        int initialRadioState = default(0); //state the radio is initially in

        double radioMinAtt = default(1.0); //radios gain factor (attenuation) while receiving
        double radioMaxAtt = default(0.0); //radios gain factor (attenuation) while not receiving

        int nbRadioChannels = default(1);  // Number of available radio channels. Defaults to single channel radio.
        int initialRadioChannel = default(0);  // Initial radio channel.

    gates:
        input upperGateIn; 	// from the MAC layer
        output upperGateOut; 	// to the MAC layer

        input upperControlIn; 	// control from the MAC layer
        output upperControlOut; 	// control to the MAC layer

        input radioIn; // for sendDirect from other physical layers

}
