Simple Module BaseLayer

Package: org.mixim.base.modules
File: base/modules/BaseLayer.ned

Base module for all layer modules. Defines the in and out gates

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

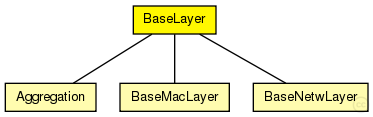

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Known subclasses:

Aggregation (simple module)	This module aggregates application level packets in larger packets.
BaseMacLayer (simple module)	Base module for every mac layer module
BaseNetwLayer (simple module)	Base module for every network layer module

Parameters:

Name	Type	Default value	Description
notAffectedByHostState	bool	false

Gates:

Name	Direction	Description
upperGateIn	input	from upper layer
upperGateOut	output	to uppe layer
upperControlIn	input	control from upper layer
upperControlOut	output	control to upper layer
lowerGateIn	input	from lower layer
lowerGateOut	output	to lower layer
lowerControlIn	input	control from lower layer
lowerControlOut	output	control to lower layer

Source code:

//
// Base module for all layer modules. Defines the in and out gates
//
simple BaseLayer
{
    parameters:
        bool notAffectedByHostState = default(false);

    gates:
        input upperGateIn; // from upper layer
        output upperGateOut; // to uppe layer
        input upperControlIn; // control from upper layer
        output upperControlOut; // control to upper layer
        input lowerGateIn; // from lower layer
        output lowerGateOut; // to lower layer
        input lowerControlIn; // control from lower layer
        output lowerControlOut; // control to lower layer
}
