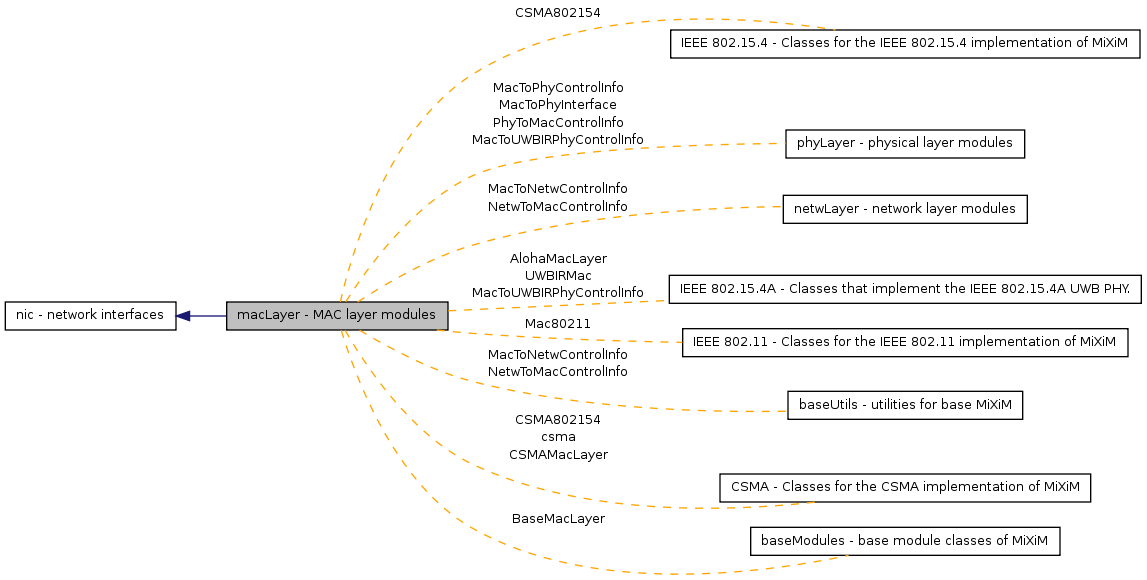

Collaboration diagram for macLayer - MAC layer modules:
|
Classes | |
| class | BaseMacLayer |
| A very simple MAC module template which provides de- and encapsulation of messages using the standard addresses and NetwToMacControlInfo of MiXiM. It also provides basic handling of lower layer messages. More... | |
| class | MacToPhyControlInfo |
| Stores information which is needed by the physical layer when sending a MacPkt. More... | |
| class | MacToPhyInterface |
| Defines the methods provided by the phy to the mac layer. More... | |
| class | PhyToMacControlInfo |
| Controlinfo for packets which are send from Physical layer to the MAC layer. More... | |
| class | MacToNetwControlInfo |
| Stores control information from mac to upper layer. More... | |
| class | NetwToMacControlInfo |
| Control info to pass next hop L2 addr from netw to MAC layer. More... | |
| class | AlohaMacLayer |
| this class implements a basic Aloha MAC protocol for an UWB-IR IEEE 802.15.4A transceiver to allow testing the PHY layer. More... | |
| class | CSMA802154 |
| Extends "csma" module by some statistics send up to the upper layer. More... | |
| class | LMacLayer |
| Implementation of L-MAC (Lightweight Medium Access Protocol for Wireless Sensor Networks [van Hoesel 04] ). More... | |
| class | Mac80211 |
| An implementation of the 802.11b MAC. More... | |
| class | UWBIRMac |
| This class provides helper function for MAC modules that use the UWB-IR IEEE 802.15.4A model. More... | |
| class | MacToUWBIRPhyControlInfo |
| This control info allows to store the IEEE802154A config parameters that were used to generate the accompanying signal. More... | |
| class | BMacLayer |
| Implementation of B-MAC (called also Berkeley MAC, Low Power Listening or LPL). More... | |
| class | csma |
| Generic CSMA Mac-Layer. More... | |
| class | CSMAMacLayer |
| MAC module which provides non-persistent CSMA. More... | |
