Basic class for all physical layers, please don't touch!! More...

#include <ChannelAccess.h>

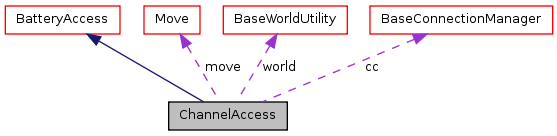

Collaboration diagram for ChannelAccess:

Public Member Functions
virtual void	initialize (int stage)
	Register with ConnectionManager and subscribe to hostPos.
virtual void	receiveBBItem (int category, const BBItem *details, int scopeModuleId)
	Called by Blackboard to inform of changes.
Static Public Member Functions
static BaseConnectionManager *	getConnectionManager (cModule *nic)
	Returns a pointer to the ConnectionManager responsible for the passed NIC module.
Protected Member Functions
simtime_t	calculatePropagationDelay (const NicEntry *nic)
	Calculates the propagation delay to the passed receiving nic.
void	sendToChannel (cPacket *msg)
	Sends a message to all nics connected to this one.
Protected Attributes
bool	useSendDirect
	use sendDirect or not?
BaseConnectionManager *	cc
	Pointer to the PropagationModel module.
bool	coreDebug
	debug this core module?
bool	usePropagationDelay
	Defines if the physical layer should simulate propagation delay.
Move	move
	Last move of this host.
int	catMove
	category number given by bb for RSSI
bool	isRegistered
	Is this module already registered with ConnectionManager?
BaseWorldUtility *	world
	Pointer to the World Utility, to obtain some global information.

Detailed Description

Basic class for all physical layers, please don't touch!!

This class is not supposed to work on its own, but it contains functions and lists that cooperate with ConnectionManager to handle the dynamically created gates. This means EVERY physical layer (the lowest layer in a host) has to be derived from this class!!!!

Please don't touch this class.

Author:: Marc Loebbers

Definition at line 52 of file ChannelAccess.h.

Member Function Documentation

BaseConnectionManager * ChannelAccess::getConnectionManager ( cModule * nic ) [static]

Returns a pointer to the ConnectionManager responsible for the passed NIC module.

Parameters:

nic

a pointer to a NIC module

Returns:: a pointer to a connection manager module or NULL if an error occurred

Definition at line 35 of file ChannelAccess.cc.

Referenced by initialize().

{
  std::string cmName = nic->hasPar("connectionManagerName")
             ? nic->par("connectionManagerName").stringValue()
             : "";
  if (cmName != ""){
    cModule* ccModule = simulation.getModuleByPath(cmName.c_str());

    return dynamic_cast<BaseConnectionManager *>(ccModule);
  }
  else {
    return FindModule<BaseConnectionManager *>::findGlobalModule();
  }
}

void ChannelAccess::initialize ( int stage ) [virtual]

Register with ConnectionManager and subscribe to hostPos.

Upon initialization ChannelAccess registers the nic parent module to have all its connections handeled by ConnectionManager

Reimplemented from BaseModule.

Definition at line 50 of file ChannelAccess.cc.

References catMove, cc, coreDebug, BaseModule::findHost(), getConnectionManager(), isRegistered, move, Blackboard::subscribe(), usePropagationDelay, and BaseModule::utility.

{
  BatteryAccess::initialize(stage);

    if( stage == 0 ){
        hasPar("coreDebug") ? coreDebug = par("coreDebug").boolValue() : coreDebug = false;

        cModule* nic = getParentModule();
    cc = getConnectionManager(nic);

        if( cc == 0 ) error("Could not find connectionmanager module");
        // subscribe to position changes
        catMove = utility->subscribe(this, &move, findHost()->getId());
        isRegistered = false;
    }

    usePropagationDelay = par("usePropagationDelay");
}

void ChannelAccess::receiveBBItem	(	int	category,
		const BBItem *	details,
		int	scopeModuleId
	)			`[virtual]`

Called by Blackboard to inform of changes.

ChannelAccess is subscribed to position changes and informs the ConnectionManager

Reimplemented from BaseModule.

Definition at line 131 of file ChannelAccess.cc.

References catMove, cc, Move::getStartPos(), Move::info(), isRegistered, move, BaseConnectionManager::registerNic(), BaseConnectionManager::updateNicPos(), and useSendDirect.

{
  BatteryAccess::receiveBBItem(category, details, scopeModuleId);

    if(category == catMove)
    {
        Move m(*static_cast<const Move*>(details));

        if(isRegistered) {
            cc->updateNicPos(getParentModule()->getId(), &m.getStartPos());
        }
        else {
            // register the nic with ConnectionManager
            // returns true, if sendDirect is used
            useSendDirect = cc->registerNic(getParentModule(), this, &m.getStartPos());
            isRegistered = true;
        }
        move = m;
        coreEV<<"new HostMove: "<<move.info()<<endl;
    }
}

void ChannelAccess::sendToChannel ( cPacket * msg ) [protected]

Sends a message to all nics connected to this one.

This function has to be called whenever a packet is supposed to be sent to the channel. Don't try to figure out what gates you have and which ones are connected, this function does this for you!

depending on which ConnectionManager module is used, the messages are send via sendDirect() or to the respective gates.

Definition at line 71 of file ChannelAccess.cc.

References calculatePropagationDelay(), cc, BaseConnectionManager::getGateList(), and useSendDirect.

Referenced by BasePhyLayer::sendMessageDown().

{
    const NicEntry::GateList& gateList = cc->getGateList( getParentModule()->getId());
    NicEntry::GateList::const_iterator i = gateList.begin();

    if(useSendDirect){
        // use Andras stuff
        if( i != gateList.end() ){
          simtime_t delay = 0;
            for(; i != --gateList.end(); ++i){
              //calculate delay (Propagation) to this receiving nic
              delay = calculatePropagationDelay(i->first);

                int radioStart = i->second->getId();
                int radioEnd = radioStart + i->second->size();
                for (int g = radioStart; g != radioEnd; ++g)
                    sendDirect(static_cast<cPacket*>(msg->dup()),
                               delay, msg->getDuration(), i->second->getOwnerModule(), g);
            }
            //calculate delay (Propagation) to this receiving nic
      delay = calculatePropagationDelay(i->first);

            int radioStart = i->second->getId();
            int radioEnd = radioStart + i->second->size();
            for (int g = radioStart; g != --radioEnd; ++g)
                sendDirect(static_cast<cPacket*>(msg->dup()),
                           delay, msg->getDuration(), i->second->getOwnerModule(), g);

            sendDirect(msg, delay, msg->getDuration(), i->second->getOwnerModule(), radioEnd);
        }
        else{
            coreEV << "Nic is not connected to any gates!" << endl;
            delete msg;
        }
    }
    else{
        // use our stuff
        coreEV <<"sendToChannel: sending to gates\n";
        if( i != gateList.end() ){
          simtime_t delay = 0;
            for(; i != --gateList.end(); ++i){
              //calculate delay (Propagation) to this receiving nic
        delay = calculatePropagationDelay(i->first);

                sendDelayed( static_cast<cPacket*>(msg->dup()),
                             delay, i->second );
            }
            //calculate delay (Propagation) to this receiving nic
      delay = calculatePropagationDelay(i->first);

            sendDelayed( msg, delay, i->second );
        }
        else{
            coreEV << "Nic is not connected to any gates!" << endl;
            delete msg;
        }
    }
}

The documentation for this class was generated from the following files:

base/connectionManager/ChannelAccess.h
base/connectionManager/ChannelAccess.cc
