UWBIRMac Class Reference
IEEE 802.15.4A - Classes that implement the IEEE 802.15.4A UWB PHY. | macLayer - MAC layer modules

This class provides helper function for MAC modules that use the UWB-IR IEEE 802.15.4A model. More...

#include <UWBIRMac.h>

Inheritance diagram for UWBIRMac:
Inheritance graph
[legend]

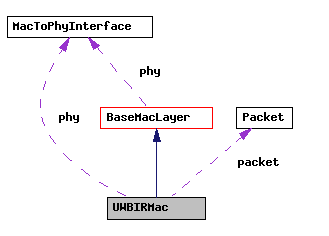

Collaboration diagram for UWBIRMac:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void initialize (int stage)
 Initialization of the module and some variables.
virtual void finish ()
 Called when the simulation has finished.

Protected Member Functions

void prepareData (UWBIRMacPkt *packet, IEEE802154A::config cfg=IEEE802154A::cfg_mandatory_4M)
virtual void handleLowerMsg (cMessage *msg)
bool validatePacket (UWBIRMacPkt *mac)
void initCounters ()

Protected Attributes

bool debug
 Debug switch for all other modules.
bool stats
bool trace
bool rsDecoder
bool packetsAlwaysValid
double totalRxBits
double errRxBits
MacToPhyInterface * phy
 Handler to the physical layer.
Packet packet
int prf
cOutVector packetsBER
cOutVector dataLengths
cOutVector erroneousSymbols
cOutVector sentPulses
cOutVector receivedPulses
cOutVector meanPacketBER
cOutVector packetSuccessRate
cOutVector packetSuccessRateNoRS
cOutVector ber
cStdDev meanBER
cOutVector RSErrorRate
cOutVector success
cOutVector successNoRS
long nbReceivedPacketsNoRS
long nbReceivedPacketsRS
long nbSentPackets
long nbSymbolErrors
long nbSymbolsReceived
long nbHandledRxPackets
long nbFramesDropped

Private Member Functions

 UWBIRMac (const UWBIRMac &)
 Copy constructor is not allowed.
UWBIRMac & operator= (const UWBIRMac &)
 Assignment operator is not allowed.

Detailed Description

This class provides helper function for MAC modules that use the UWB-IR IEEE 802.15.4A model.

Just before sending down a packet to the UWBIRPhyLayer, call prepareData(UWBIRMacPkt* packet). Just after receiving a packet from the UWBIRPhyLayer, call validatePacket(UWBIRMacPkt* packet) and check the returned bool value to know if the packet could be decoded successfully.

Member Function Documentation

void UWBIRMac::handleLowerMsg ( cMessage *  msg) [protected, virtual]

If message arrives from lower layer, check whether it is for us. Send it up if yes.

This basic implementation just forwards all message that are broadcast (destAddr = L2BROADCAST) or destined for this node (destAddr = nic module getId()) to the network layer

See also:
sendUp

Reimplemented from BaseMacLayer.

Reimplemented in AlohaMacLayer.

                                           {
  UWBIRMacPkt *mac = static_cast<UWBIRMacPkt *> (msg);

  if (validatePacket(mac)) {
    const LAddress::L2Type& dest = mac->getDestAddr();
    const LAddress::L2Type& src  = mac->getSrcAddr();
    if ((dest == myMacAddr)) {
      debugEV<< "message with mac addr " << src
      << " for me (dest=" << dest
      << ") -> forward packet to upper layer" << std::endl;
      sendUp(decapsMsg(mac));
    } else {
      debugEV << "message with mac addr " << src
      << " not for me (dest=" << dest
      << ") -> delete (my MAC=" << myMacAddr << ")" << std::endl;
      delete mac;
    }
  } else {
    debugEV << "Errors in message ; dropping mac packet." << std::endl;
    delete mac;
  }
}
void UWBIRMac::initialize ( int  stage) [virtual]

Initialization of the module and some variables.

First we have to initialize the module from which we derived ours, in this case BaseLayer.

Reimplemented from BaseMacLayer.

Reimplemented in AlohaMacLayer.

References BaseLayer::catDroppedPacketSignal, simsignalwrap_t::initialize(), and BaseMacLayer::initialize().

Referenced by AlohaMacLayer::initialize().

                                   {
  BaseMacLayer::initialize(stage);
  if (stage == 0) {
    BaseLayer::catDroppedPacketSignal.initialize();

    debug = par("debug").boolValue();
    stats = par("stats").boolValue();
    trace = par("trace").boolValue();
    prf   = par("PRF");
    assert(prf == 4 || prf == 16);
    packetsAlwaysValid = par("packetsAlwaysValid");
    rsDecoder          = par("RSDecoder").boolValue();
    phy = FindModule<MacToPhyInterface*>::findSubModule( this->getNic() );
    initCounters();
  }
}
