Network Mac80211

This example shows how to use MiXiMs 802.11 protocol implementation.

The network consists of ten hosts broadcasting bursts of three packets to the other hosts. When a broadcast is received a reply is sent back to the sender.

The hosts use "Mac80211" as MAC layer and their phy layer uses "SimplePathlossModel" as AnalogueModel and "Decider80211" as Decider. Note that Mac80211 and Decider80211 are always meant to be used together.

The default configuration in omnetpp.ini uses no propagation delay.

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

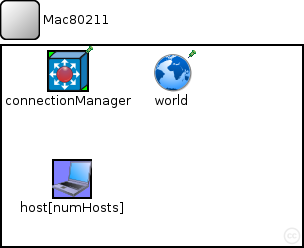

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Properties:

Unassigned submodule parameters:

Source code:

//
//This example shows how to use MiXiMs 802.11 protocol implementation.
//
//The network consists of ten hosts broadcasting bursts of three packets
//to the other hosts. When a broadcast is received a reply is sent back
//to the sender.
//
//The hosts use "Mac80211" as MAC layer and their phy layer uses
//"SimplePathlossModel" as AnalogueModel and "Decider80211" as Decider.
//Note that Mac80211 and Decider80211 are always meant to be used
//together.
//
//The default configuration in omnetpp.ini uses no propagation delay.
//
network Mac80211
{
    parameters:
        double playgroundSizeX @unit(m); // x size of the area the nodes are in (in meters)
        double playgroundSizeY @unit(m); // y size of the area the nodes are in (in meters)
        double playgroundSizeZ @unit(m); // z size of the area the nodes are in (in meters)
        double numHosts; // total number of hosts in the network

        @display("bgb=$playgroundSizeX,$playgroundSizeY,white,,;bgp=10,50");

    submodules:
        world: BaseWorldUtility {
            parameters:
                playgroundSizeX = playgroundSizeX;
                playgroundSizeY = playgroundSizeY;
                playgroundSizeZ = playgroundSizeZ;
                @display("p=171,27;i=misc/globe");

        }
        connectionManager: ConnectionManager {
            parameters:
                @display("p=66,25;b=42,42,rect,green;i=abstract/multicast");
        }
        host[numHosts]: Host80211 {
            netwType = "BaseNetwLayer";
            applType = "BurstApplLayer";
            mobType = "ConstSpeedMobility";
        }

    connections allowunconnected:
    // all connections and gates are to be generated dynamically

}
