Network BaseMoBANNetwork

This network is exactly the same as baseNetwork existing among the examples of MiXiM, but the desired number of MoBAN coordinator modules have been added. Some nodes of type BaseNode use MoBANLocal module as their mobility module. Then those nodes will be considered as WBAN nodes. Those node have a parameter named "coordinatorIndex" that determines to which WBAN (coordinator) the node belongs.

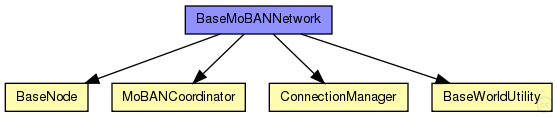

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Properties:

Unassigned submodule parameters:

Source code:

//
// This network is exactly the same as baseNetwork existing among the examples of MiXiM, but the desired number of MoBAN coordinator modules have been added.
// Some nodes of type BaseNode use MoBANLocal module as their mobility module. Then those nodes will be considered as WBAN nodes.
// Those node have a parameter named "coordinatorIndex" that determines to which WBAN (coordinator) the node belongs.
//
network BaseMoBANNetwork
{
    parameters:
        double playgroundSizeX @unit(m); // x size of the area the nodes are in (in meters)
        double playgroundSizeY @unit(m); // y size of the area the nodes are in (in meters)
        double playgroundSizeZ @unit(m); // z size of the area the nodes are in (in meters)
        double numNodes; // total number of nodes in the network, either ordinary nodes or WBAN nodes
        int numMoBAN; // total number of MoBAN coordinators (WBAN instances)

        @display("bgb=$playgroundSizeX,$playgroundSizeY,white;bgp=0,0");
    submodules:
        connectionManager: ConnectionManager {
            parameters:
                @display("p=70,0;i=abstract/multicast;;is=vs");
        }

        world: BaseWorldUtility {
            parameters:
                playgroundSizeX = playgroundSizeX;
                playgroundSizeY = playgroundSizeY;
                playgroundSizeZ = playgroundSizeZ;
                @display("p=100,0;i=misc/globe;is=vs");
        }

        node[numNodes]: BaseNode {
            parameters:
                @display("p=2,6;b=8,8,oval,red,,");
        }

        MoBANCoor[numMoBAN]: MoBANCoordinator {
            parameters:
                @display("p=170,120;i=block/wheelbarrow");
        }

    connections allowunconnected:

}
