Compound Module WirelessNodeNetwl

Package: org.mixim.modules.node
File: src/modules/node/WirelessNode.ned

(no description)

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
WirelessNode	compound module	Standard host module for a wireless MiXiM host with configurable NIC, and OSI layers, and mobility module.

Known subclasses:

Name	Type	Description
PhyMacHost	compound module	(no description)

Parameters:

Name	Type	Default value	Description
networkType	string	"BaseNetwLayer"	type of the network layer
transportType	string	""	type of the transport layer
sessionType	string	""	type of the session layer
presentationType	string	""	type of the presentation layer
applicationType	string	""	type of the application layer
mobilityType	string	"StationaryMobility"	type of the mobility module
arpType	string	"BaseArp"	type of address resolution module
nicType	string

Properties:

Name	Value	Description
display	bgb=210,450,white;i=device/palm;b=40,40,rect
node

Gates:

Name	Direction	Size	Description
radioIn	input		gate for sendDirect

Unassigned submodule parameters:

Name	Type	Description
netwl.stats	bool	stats switch
netwl.headerLength	int	length of the network packet header (in bits)
tranl.stats	bool	stats switch
tranl.headerLength	int	length of the network packet header (in bits)
sessl.stats	bool	stats switch
sessl.headerLength	int	length of the network packet header (in bits)
presl.stats	bool	stats switch
presl.headerLength	int	length of the network packet header (in bits)
appl.headerLength	int	length of the application message header (in bits)

Source code:

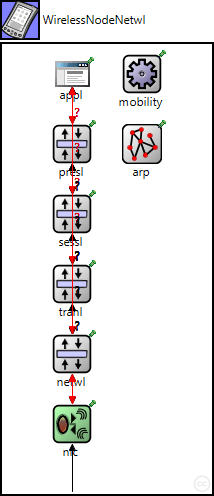

module WirelessNodeNetwl extends WirelessNode
{
    parameters:
        transportType = default("");    //type of the transport layer
        sessionType = default("");      //type of the session layer
        presentationType = default(""); //type of the presentation layer
        applicationType = default("");  //type of the application layer

    connections allowunconnected:
}
