Classes
class	IMobility
	Abstract base class defining the public interface that must be provided by all mobility modules. More...
class	ANSimMobility
	Uses the <position_change> elements of the ANSim tool's trace file. See NED file for more info. More...
class	BonnMotionFileCache
class	BonnMotionMobility
	Uses the BonnMotion native file format. See NED file for more info. More...
class	CircleMobility
	Circle movement model. See NED file for more info. More...
class	ConstSpeedMobility
	Moves along a line with constant speed to a randomly chosen target. When the target is reached it selects randomly a new one. More...
class	LinearMobility
	Linear movement model. See NED file for more info. More...
class	LinearNodeDistributionMobility
	Mobility model which places all hosts at constant distances in a line with an orientation. More...
class	LineSegmentsMobilityBase
	Base class for mobility models where movement consists of a sequence of linear movements of constant speed. More...
class	MassMobility
	Models the mobility of with mass, making random motions. See NED file for more info. More...
class	MoBANCoordinator
	This is the coordinator module of the MoBAN mobility model. It should be instantiated in the top level simulation network, once per WBAN. The coordinator module is the main module that provides the group mobility and correlation between nodes in a WBAN. In the initialization phase, it reads three user defined input files which are the postures specification file, a configuration file which includes all required parameter for specific distributions, and the previously logged mobility pattern, if it is requested to use a logged pattern. Note that all WBAN instances may use the same input files if they are exactly in the same situation. More...
class	MoBANLocal
	This is the local mobility module of MoBAN. It should be instantiated in each node that belongs to a WBAN. The NED parameter "coordinatorIndex" determines to which WBAN (MoBANCoordinator) it belongs. The current implementation uses the Random Walk Mobility Model (RWMM) for individual (local) movement within a sphere around the node, with given speed and sphere radius of the current posture. The reference point of the node in the current posture, the sphere radius, and the speed is given by the corresponding coordinator. RWMM determines the location of the node at any time relative to the given reference point. More...
class	MobilityBase
	Abstract base class for mobility modules. More...
class	MovingMobilityBase
	Base class for moving mobility modules. Periodically emits a signal with the current mobility state. More...
class	Posture
	to store the specification of a posture on the MoBAN mobility model. More...
class	PostureTransition
	Class to provide spatial and temporal correlation in the posture selection process of the MoBAN mobility model. This class obtains and stores Markovian transition matrices. There is also the possibility to get a steady state vector. In this case, the closest transition matrix to the default Makov matrix is extracted which satisfies the given steady state vector. The class also receives the defined area types and time domains as well as given space-time domains during the initialization phase. During the simulation run, the class provide a functions to return the corresponding markov matrix for a given time and location. It will be used whenever a new posture is going to be selected. More...
class	RectangleMobility
	Rectangle movement model. See NED file for more info. More...
class	StaticGridMobility
	Mobility model which places all hosts at constant distances within the simulation area (resulting in a regular grid). More...
class	StationaryMobility
class	TractorMobility
	Tractor movement model. See NED file for more info. More...
class	TurtleMobility
	LOGO-style movement model, with the script coming from XML. See NED file for more info. More...

Detailed Description

The following diagrams give an overview of the functionality of a mobility-module.

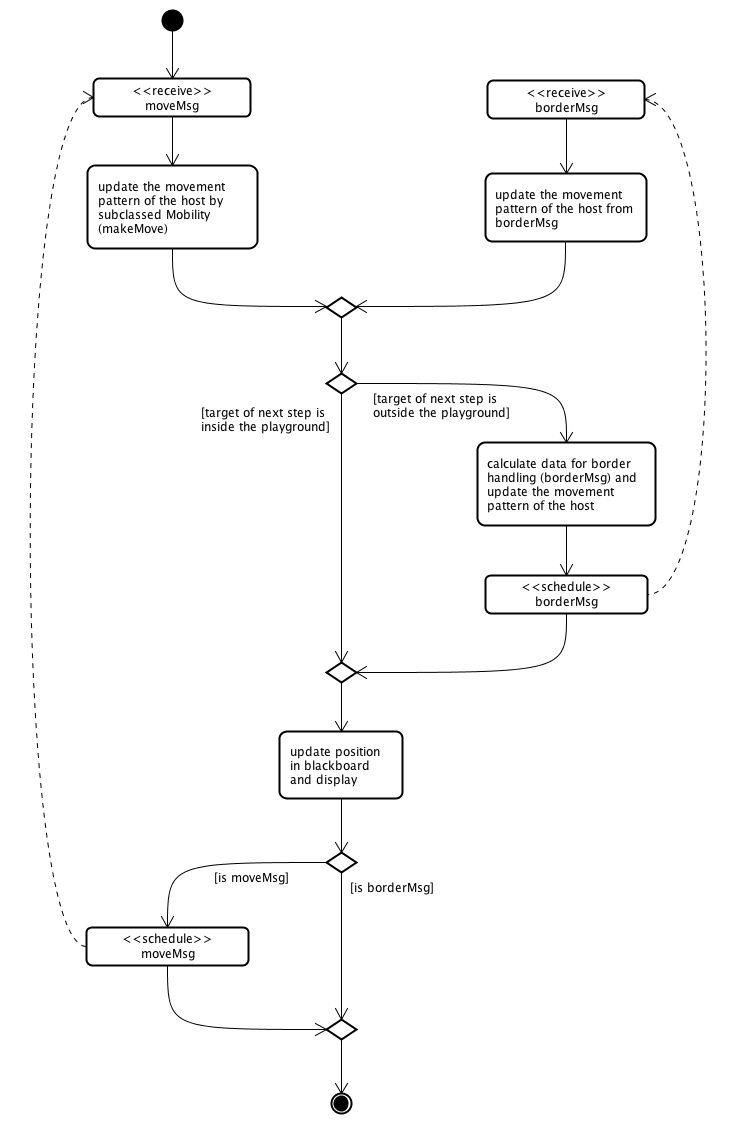

Activity diagram: an overview on how movement-updates in MobilityBase work

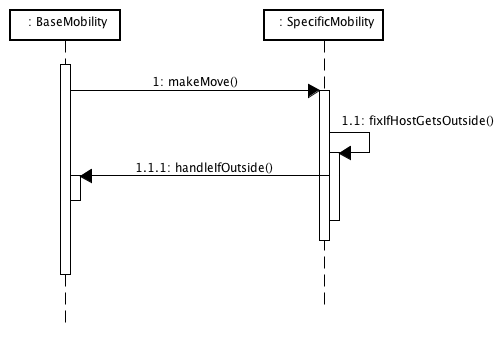

Sequence diagram: call-hierarchy when move-message is processed

Shows how sub-classing mobility-modules are involved in the movement-calculation for a host. They overwrite the method makeMove() to calculate the next movement-step and after that they have to call fixIfHostGetsOutside() which takes care of border-handling. The implementation of this method at least has to call handleIfOutside() and pass the border-policy to use as well as references to parameters to be updated. The figure below shows some details on how border-handling and the different border-policies work.

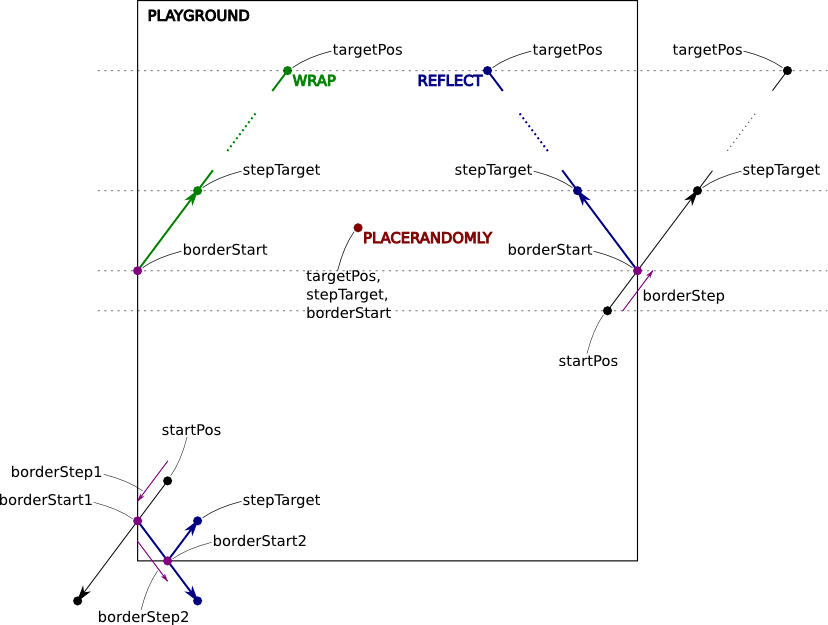

Illustrated border-handling under the different border-policies, multiple border-handling in one movement-step
