Simple Module EtherHub

Package: inet.linklayer.ethernet
File: src/linklayer/ethernet/EtherHub.ned

A generic wiring hub model.

ethg[i] gates represent ports. Messages arriving on a port are broadcast to every other port.

The connections should have data rate set to zero. Cable lengths should be reflected in the delays of the connections.

Messages are not interpreted by the hub model in any way, thus the hub model is not specific to Ethernet in any way. Messages may represent anything, from the beginning of a frame transmission to end (or abortion) of transmission.

Usage diagram:

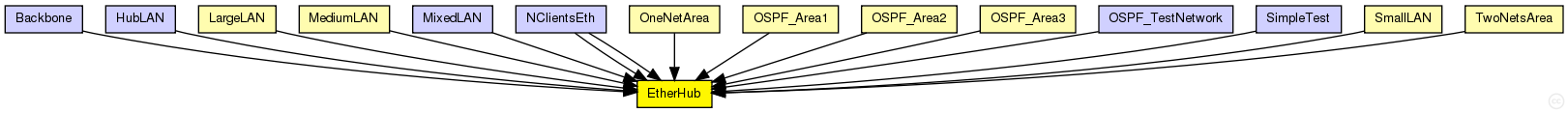

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

LargeLAN (compound module)	Several hosts and an Ethernet hub on a switch. One port of the hub connect to a 10Base2 segment.
MediumLAN (compound module)	Several hosts and an Ethernet hub on a switch
OneNetArea (compound module)	(no description)
OSPF_Area1 (compound module)	(no description)
OSPF_Area2 (compound module)	(no description)
OSPF_Area3 (compound module)	(no description)
SmallLAN (compound module)	Several hosts on an Ethernet hub
TwoNetsArea (compound module)	(no description)

Networks:

Backbone (network)	(no description)
HubLAN (network)	Sample Ethernet LAN: four hosts connected by a hub.
MixedLAN (network)	Sample Ethernet LAN containing eight hosts, a switch and a bus.
NClientsEth (network)	(no description)
NClientsEth (network)	(no description)
OSPF_TestNetwork (network)	(no description)
SimpleTest (network)	(no description)

Properties:

Name	Value	Description
node
display	i=device/hub

Gates:

Name	Direction	Size	Description
ethg [ ]	inout		to stations; each one represents a port

Source code:

//
// A generic wiring hub model.
//
// ethg[i] gates represent ports. Messages arriving on a port are broadcast
// to every other port.
//
// The connections should have data rate set to zero. Cable lengths
// should be reflected in the delays of the connections.
//
// Messages are not interpreted by the hub model in any way, thus the hub
// model is not specific to Ethernet in any way. Messages may
// represent anything, from the beginning of a frame transmission to
// end (or abortion) of transmission.
//
simple EtherHub
{
    parameters:
        @node();
        @display("i=device/hub");
    gates:
        inout ethg[] @labels(EtherFrame-conn);  // to stations; each one represents a port
}
