Network OSPF_AreaTest

Package: inet.examples.ospfv2.areas
File: examples/ospfv2/areas/Areas.ned

(no description)

Usage diagram:

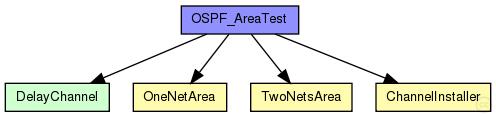

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Properties:

Name	Value	Description
isNetwork

Unassigned submodule parameters:

Name	Type	Default value	Description
Area1.R1.ospf.ospfConfigFile	string		xml file containing the full OSPF AS configuration
Area1.R1.networkLayer.ip.procDelay	double	0s
Area1.R1.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area1.R1.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area1.R1.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area1.R1.ppp.ppp.mtu	int	4470
Area1.R1.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area1.R1.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area1.R1.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area1.R1.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area1.R1.eth.mac.mtu	int	1500
Area1.R3.ospf.ospfConfigFile	string		xml file containing the full OSPF AS configuration
Area1.R3.networkLayer.ip.procDelay	double	0s
Area1.R3.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area1.R3.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area1.R3.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area1.R3.ppp.ppp.mtu	int	4470
Area1.R3.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area1.R3.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area1.R3.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area1.R3.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area1.R3.eth.mac.mtu	int	1500
Area1.H1.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
Area1.H1.sctp.rtoInitial	double	3s
Area1.H1.sctp.rtoMin	double	1s
Area1.H1.sctp.rtoMax	double	60s
Area1.H1.sctp.rtoAlpha	double	0.125
Area1.H1.sctp.rtoBeta	double	0.250
Area1.H1.sctp.maxBurst	int	4
Area1.H1.sctp.assocMaxRetrans	int	10
Area1.H1.sctp.pathMaxRetrans	int	5
Area1.H1.sctp.maxInitRetrans	int	8
Area1.H1.sctp.sackPeriod	double	200ms
Area1.H1.sctp.sackFrequency	int	2
Area1.H1.sctp.reactivatePrimaryPath	bool	false
Area1.H1.sctp.sendQueueLimit	int	0
Area1.H1.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
Area1.H1.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
Area1.H1.sctp.hbInterval	double	30s
Area1.H1.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
Area1.H1.sctp.naglePoint	int	1468
Area1.H1.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
Area1.H1.sctp.sctpAlgorithmClass	string	"SCTPAlg"
Area1.H1.sctp.ccModule	int	0	RFC4960=0
Area1.H1.sctp.ssModule	int	0	ROUND_ROBIN=0
Area1.H1.sctp.arwnd	int	65535
Area1.H1.sctp.swsLimit	int	3000	Limit for SWS
Area1.H1.sctp.udpEncapsEnabled	bool	false
Area1.H1.pingApp.destAddr	string	""	destination IP or IPv6 address
Area1.H1.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
Area1.H1.pingApp.packetSize	double	56B	of ping payload, in bytes
Area1.H1.pingApp.interval	double	1s	time to wait between pings (can be random)
Area1.H1.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
Area1.H1.pingApp.count	double	0	stop after count ping requests, 0 means continuously
Area1.H1.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
Area1.H1.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
Area1.H1.pingApp.printPing	bool	true	dump on stdout
Area1.H1.networkLayer.ip.procDelay	double	0s
Area1.H1.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area1.H1.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area1.H1.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area1.H1.ppp.ppp.mtu	int	4470
Area1.H1.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area1.H1.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area1.H1.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area1.H1.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area1.H1.eth.mac.mtu	int	1500
Area1.H1.ext.filterString	string
Area1.H1.ext.device	string
Area1.H1.ext.mtu	int	1500
Area1.H1.tcpdump.dumpFile	string	""
Area1.H1.tcpdump.threadEnable	bool	false
Area1.H1.tcpdump.snaplen	int	65535
Area1.H1.tcpdump.verbosity	int	0
Area1.H2.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
Area1.H2.sctp.rtoInitial	double	3s
Area1.H2.sctp.rtoMin	double	1s
Area1.H2.sctp.rtoMax	double	60s
Area1.H2.sctp.rtoAlpha	double	0.125
Area1.H2.sctp.rtoBeta	double	0.250
Area1.H2.sctp.maxBurst	int	4
Area1.H2.sctp.assocMaxRetrans	int	10
Area1.H2.sctp.pathMaxRetrans	int	5
Area1.H2.sctp.maxInitRetrans	int	8
Area1.H2.sctp.sackPeriod	double	200ms
Area1.H2.sctp.sackFrequency	int	2
Area1.H2.sctp.reactivatePrimaryPath	bool	false
Area1.H2.sctp.sendQueueLimit	int	0
Area1.H2.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
Area1.H2.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
Area1.H2.sctp.hbInterval	double	30s
Area1.H2.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
Area1.H2.sctp.naglePoint	int	1468
Area1.H2.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
Area1.H2.sctp.sctpAlgorithmClass	string	"SCTPAlg"
Area1.H2.sctp.ccModule	int	0	RFC4960=0
Area1.H2.sctp.ssModule	int	0	ROUND_ROBIN=0
Area1.H2.sctp.arwnd	int	65535
Area1.H2.sctp.swsLimit	int	3000	Limit for SWS
Area1.H2.sctp.udpEncapsEnabled	bool	false
Area1.H2.pingApp.destAddr	string	""	destination IP or IPv6 address
Area1.H2.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
Area1.H2.pingApp.packetSize	double	56B	of ping payload, in bytes
Area1.H2.pingApp.interval	double	1s	time to wait between pings (can be random)
Area1.H2.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
Area1.H2.pingApp.count	double	0	stop after count ping requests, 0 means continuously
Area1.H2.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
Area1.H2.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
Area1.H2.pingApp.printPing	bool	true	dump on stdout
Area1.H2.networkLayer.ip.procDelay	double	0s
Area1.H2.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area1.H2.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area1.H2.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area1.H2.ppp.ppp.mtu	int	4470
Area1.H2.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area1.H2.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area1.H2.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area1.H2.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area1.H2.eth.mac.mtu	int	1500
Area1.H2.ext.filterString	string
Area1.H2.ext.device	string
Area1.H2.ext.mtu	int	1500
Area1.H2.tcpdump.dumpFile	string	""
Area1.H2.tcpdump.threadEnable	bool	false
Area1.H2.tcpdump.snaplen	int	65535
Area1.H2.tcpdump.verbosity	int	0
Area1.R2.ospf.ospfConfigFile	string		xml file containing the full OSPF AS configuration
Area1.R2.networkLayer.ip.procDelay	double	0s
Area1.R2.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area1.R2.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area1.R2.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area1.R2.ppp.ppp.mtu	int	4470
Area1.R2.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area1.R2.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area1.R2.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area1.R2.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area1.R2.eth.mac.mtu	int	1500
Area2.H3.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
Area2.H3.sctp.rtoInitial	double	3s
Area2.H3.sctp.rtoMin	double	1s
Area2.H3.sctp.rtoMax	double	60s
Area2.H3.sctp.rtoAlpha	double	0.125
Area2.H3.sctp.rtoBeta	double	0.250
Area2.H3.sctp.maxBurst	int	4
Area2.H3.sctp.assocMaxRetrans	int	10
Area2.H3.sctp.pathMaxRetrans	int	5
Area2.H3.sctp.maxInitRetrans	int	8
Area2.H3.sctp.sackPeriod	double	200ms
Area2.H3.sctp.sackFrequency	int	2
Area2.H3.sctp.reactivatePrimaryPath	bool	false
Area2.H3.sctp.sendQueueLimit	int	0
Area2.H3.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
Area2.H3.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
Area2.H3.sctp.hbInterval	double	30s
Area2.H3.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
Area2.H3.sctp.naglePoint	int	1468
Area2.H3.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
Area2.H3.sctp.sctpAlgorithmClass	string	"SCTPAlg"
Area2.H3.sctp.ccModule	int	0	RFC4960=0
Area2.H3.sctp.ssModule	int	0	ROUND_ROBIN=0
Area2.H3.sctp.arwnd	int	65535
Area2.H3.sctp.swsLimit	int	3000	Limit for SWS
Area2.H3.sctp.udpEncapsEnabled	bool	false
Area2.H3.pingApp.destAddr	string	""	destination IP or IPv6 address
Area2.H3.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
Area2.H3.pingApp.packetSize	double	56B	of ping payload, in bytes
Area2.H3.pingApp.interval	double	1s	time to wait between pings (can be random)
Area2.H3.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
Area2.H3.pingApp.count	double	0	stop after count ping requests, 0 means continuously
Area2.H3.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
Area2.H3.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
Area2.H3.pingApp.printPing	bool	true	dump on stdout
Area2.H3.networkLayer.ip.procDelay	double	0s
Area2.H3.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area2.H3.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area2.H3.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area2.H3.ppp.ppp.mtu	int	4470
Area2.H3.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area2.H3.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area2.H3.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area2.H3.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area2.H3.eth.mac.mtu	int	1500
Area2.H3.ext.filterString	string
Area2.H3.ext.device	string
Area2.H3.ext.mtu	int	1500
Area2.H3.tcpdump.dumpFile	string	""
Area2.H3.tcpdump.threadEnable	bool	false
Area2.H3.tcpdump.snaplen	int	65535
Area2.H3.tcpdump.verbosity	int	0
Area2.R5.ospf.ospfConfigFile	string		xml file containing the full OSPF AS configuration
Area2.R5.networkLayer.ip.procDelay	double	0s
Area2.R5.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area2.R5.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area2.R5.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area2.R5.ppp.ppp.mtu	int	4470
Area2.R5.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area2.R5.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area2.R5.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area2.R5.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area2.R5.eth.mac.mtu	int	1500
Area2.R4.ospf.ospfConfigFile	string		xml file containing the full OSPF AS configuration
Area2.R4.networkLayer.ip.procDelay	double	0s
Area2.R4.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
Area2.R4.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
Area2.R4.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
Area2.R4.ppp.ppp.mtu	int	4470
Area2.R4.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
Area2.R4.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
Area2.R4.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
Area2.R4.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
Area2.R4.eth.mac.mtu	int	1500

Source code:

network OSPF_AreaTest
{
    submodules:
        channelInstaller: ChannelInstaller {
            parameters:
                channelClass = "ThruputMeteringChannel";
                channelAttrs = "format=#N";
                @display("p=456,36");
        }
        Area1: TwoNetsArea {
            parameters:
                @display("p=108,112;b=136,128");
            gates:
                ethg[1];
        }
        Area2: OneNetArea {
            parameters:
                @display("p=324,112;b=136,128");
            gates:
                ethg[1];
        }
    connections:
        Area1.ethg[0] <--> {  delay = 0.1us; } <--> Area2.ethg[0];
}
