Compound Module NicCSMA

Package: org.mixim.modules.nic
File: modules/nic/NicCSMA.ned

This module implements a CSMA network interface card using the "csma" MAC layer module

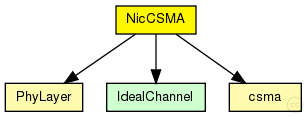

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Name	Type	Default value	Description
connectionManagerName	string	""	name of the ConnectionManager module

Gates:

Name	Direction	Description
upperGateIn	input	to upper layers
upperGateOut	output	from upper layers
upperControlOut	output	control information
upperControlIn	input	control information
radioIn	input	radioIn gate for sendDirect

Unassigned submodule parameters:

Name	Type	Default value	Description
mac.notAffectedByHostState	bool	false
mac.coreDebug	bool		debug switch
mac.headerLength	double	72 bit	length of the MAC packet header (in bits)
mac.debug	bool	false	debug switch
mac.stats	bool	true
mac.trace	bool	false
mac.queueLength	double	100	size of the MAC queue (maximum number of packets in Tx buffer)
mac.bitrate	double	250000 bps	bit rate
mac.ccaDetectionTime	double	0.000128 s	Clear Channel Assessment detection time
mac.rxSetupTime	double		Time to setup radio to reception state
mac.aTurnaroundTime	double	0.000192 s	Time to switch radio from Rx to Tx state
mac.txPower	double		tx power [mW]
mac.useMACAcks	bool		Send/Expect MAC acks for unicast traffic?
mac.macMaxFrameRetries	double	3	maximum number of frame retransmission only used when usage of MAC acks is enabled
mac.macAckWaitDuration	double	0.00056 s	time to wait for an acknowledgement after transmitting a unicast frame. only used when usage of MAC acks is enabled
mac.ackLength	double	40 bit	complete MAC ack message length (in bits) (! headerLength is not added to this) only used when usage of MAC acks is enabled
mac.sifs	double	0.000192 s	simple interframe space. Time to wait between receiving a frame and acknowledging it. Should be bigger than the maximum time for switching between Tx and Rx at the receiver. only used when usage of MAC acks is enabled
mac.backoffMethod	string	"linear"	backoff method to use: constant, linear or exponential
mac.macMaxCSMABackoffs	double	5	maximum backoffs
mac.aUnitBackoffPeriod	double	0.00032 s	base unit for all backoff calculations
mac.contentionWindow	int	2	# of backoff periods of the initial contention window (for linear and constant backoff method only)
mac.macMinBE	double	3	minimum backoff exponent (for exponential backoff method only)
mac.macMaxBE	double	8	maximum backoff exponent (for exponential backoff method only)
phy.coreDebug	bool		debug switch for core framework
phy.recordStats	bool	false	enable/disable tracking of statistics (eg. cOutvectors)
phy.headerLength	int	0	defines the length of the phy header (/preamble)
phy.usePropagationDelay	bool		Should transmission delay be simulated?
phy.thermalNoise	double		the strength of the thermal noise [dBm]
phy.useThermalNoise	bool		should thermal noise be considered?
phy.analogueModels	xml		Specification of the analogue models to use and their parameters
phy.decider	xml		Specification of the decider to use and its parameters
phy.sensitivity	double		The sensitivity of the physical layer [dBm]
phy.maxTXPower	double		The maximum transimission power of the physical layer [mW]
phy.timeRXToTX	double	0	switchTimes [s]:
phy.timeRXToSleep	double	0
phy.timeTXToRX	double	0
phy.timeTXToSleep	double	0
phy.timeSleepToRX	double	0
phy.timeSleepToTX	double	0
phy.initialRadioState	int	0	state the radio is initially in
phy.radioMinAtt	double	1.0	radios gain factor (attenuation) while receiving
phy.radioMaxAtt	double	0.0	radios gain factor (attenuation) while not receiving
phy.nbRadioChannels	int	1	Number of available radio channels. Defaults to single channel radio.
phy.initialRadioChannel	int	0	Initial radio channel.

Source code:

//
// This module implements a CSMA network interface card using
// the "csma" MAC layer module
//
module NicCSMA like INic
{
    parameters:
        string connectionManagerName = default("");   //name of the ConnectionManager module
    gates:
        input upperGateIn; // to upper layers
        output upperGateOut; // from upper layers
        output upperControlOut; // control information
        input upperControlIn; // control information
        input radioIn; // radioIn gate for sendDirect

    submodules:
        mac: csma {
            @display("p=96,87;i=block/layer");
        }

        phy: PhyLayer {
            @display("p=106,157;i=block/process_s");
        }

    connections:
        mac.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> upperGateOut;
        mac.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- upperGateIn;
        mac.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> upperControlOut;
        mac.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- upperControlIn;

        phy.upperGateOut --> { @display("ls=black;m=m,25,50,25,0"); } --> mac.lowerGateIn;
        phy.upperGateIn <-- { @display("ls=black;m=m,15,50,15,0"); } <-- mac.lowerGateOut;
        phy.upperControlOut --> { @display("ls=red;m=m,75,50,75,0"); } --> mac.lowerControlIn;
        phy.upperControlIn <-- { @display("ls=red;m=m,85,0,85,0"); } <-- mac.lowerControlOut;

        radioIn --> phy.radioIn;

}
